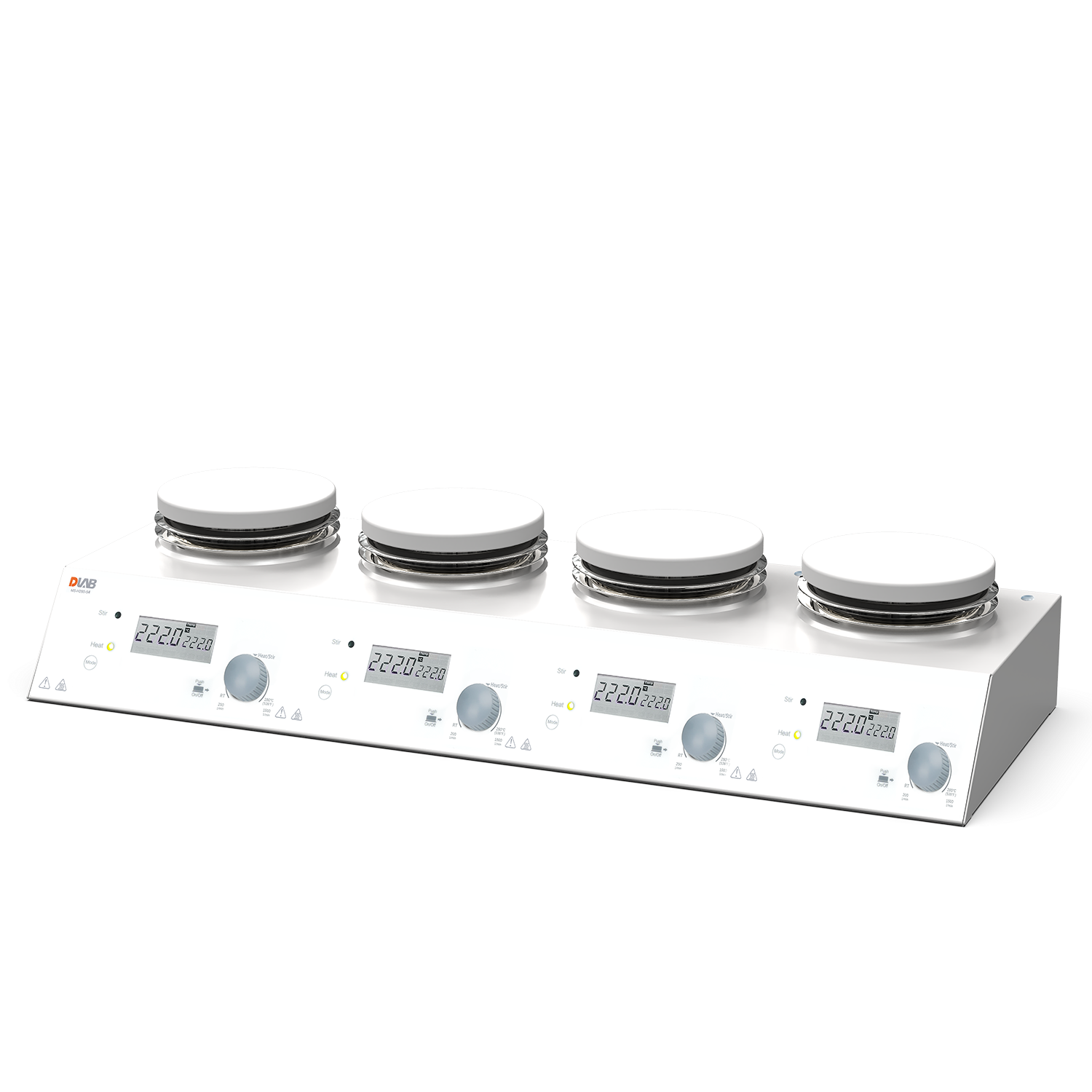

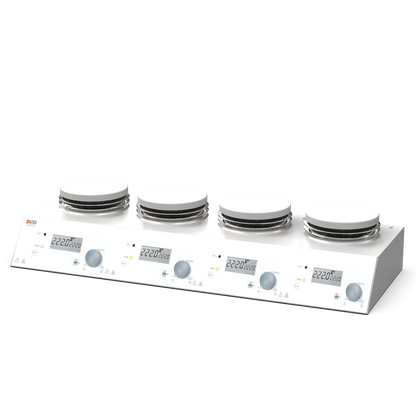

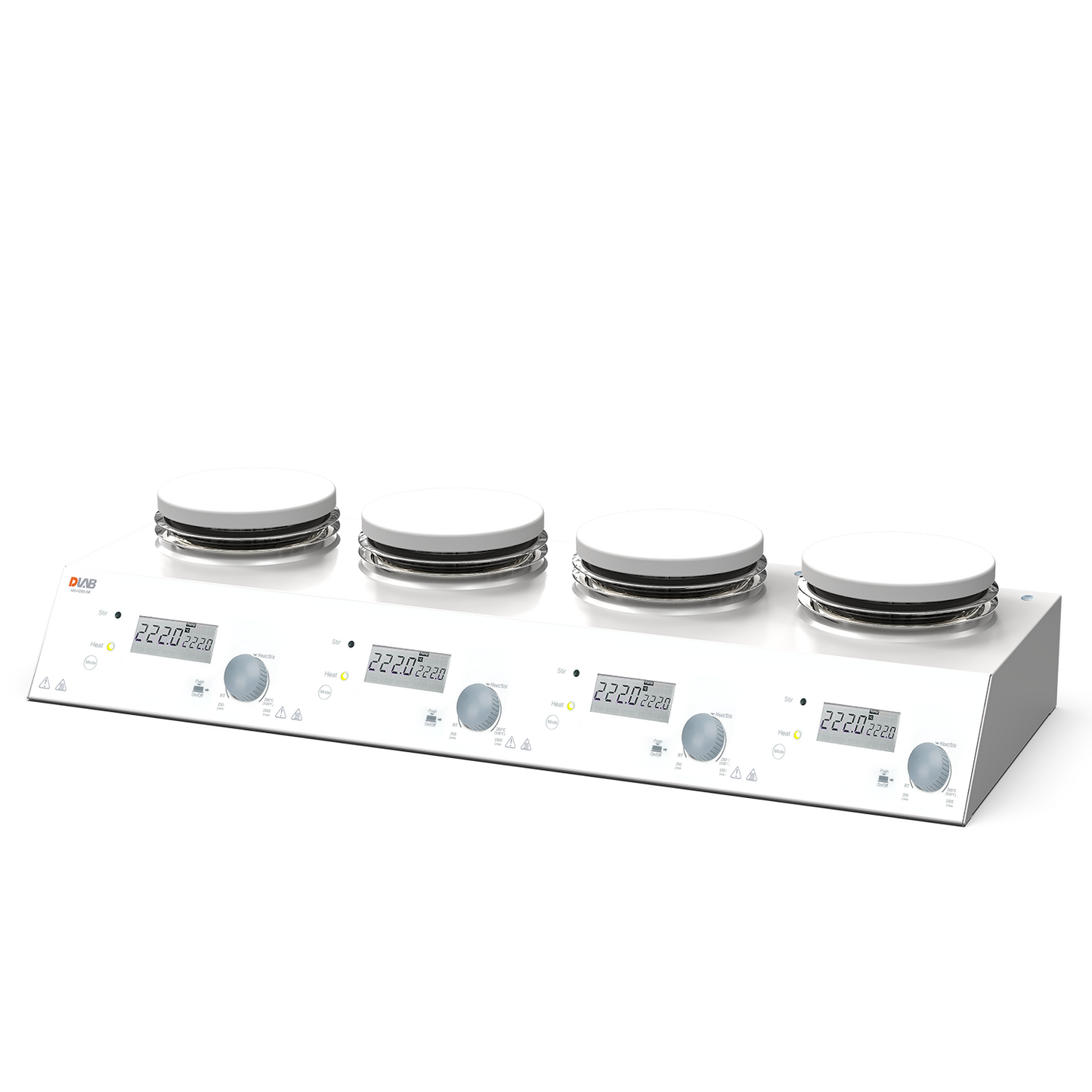

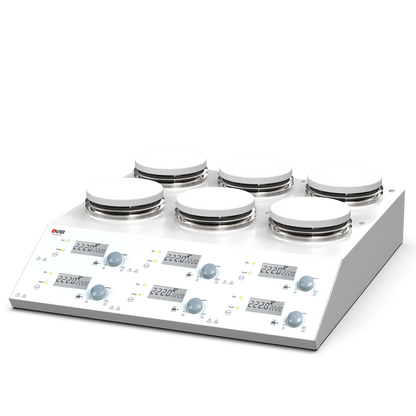

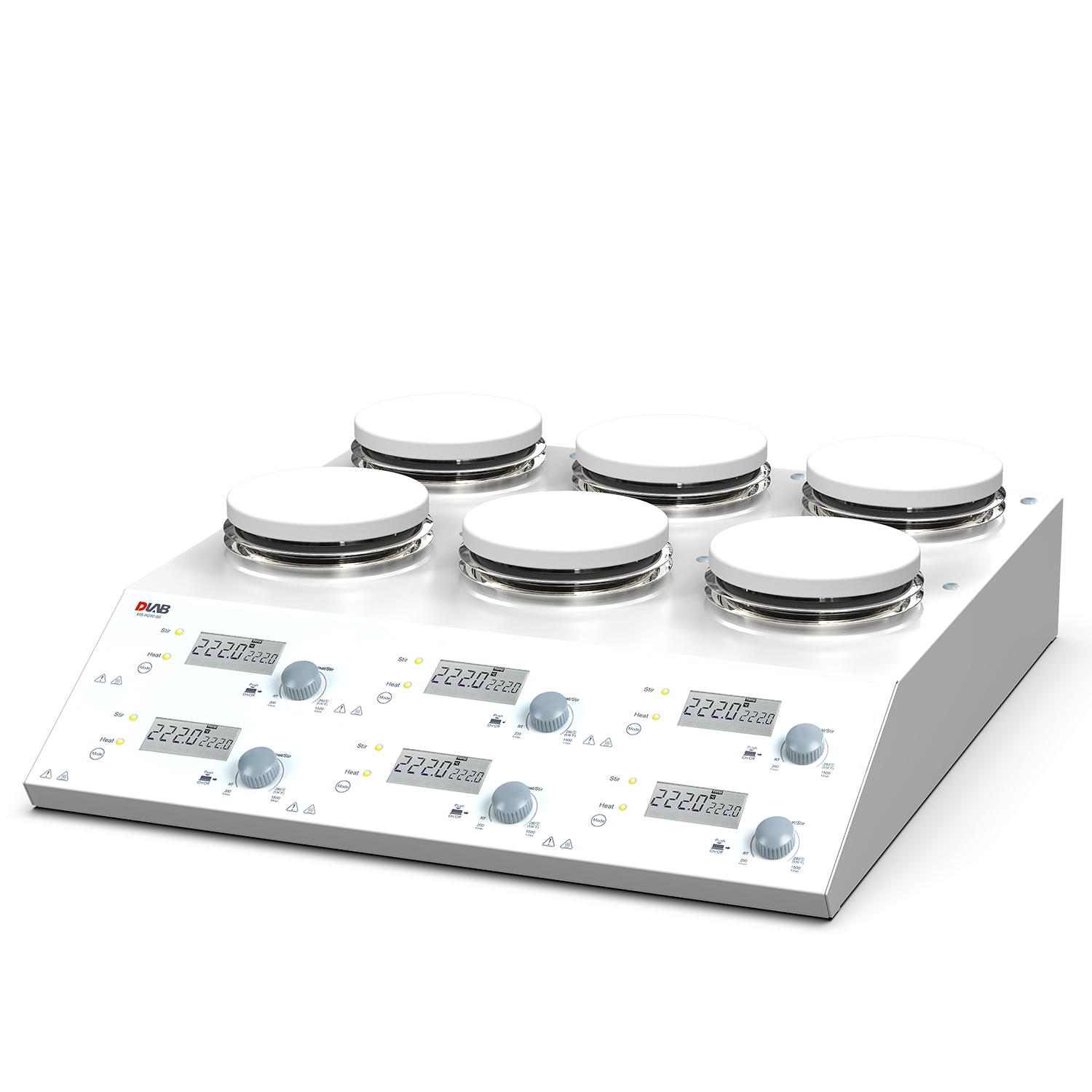

4/6 Channel LCD Digital Hotplate Magnetic Stirrer（MS-H280-S4，MS-H280-S6）
4/6 Channel LCD Digital Hotplate Magnetic Stirrer（MS-H280-S4，MS-H280-S6）
Product Features：
4/6 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
Powerful, rapid heating with accurate PID temperature control
Spark-free DC brushless motor with extended life and no maintenance
Compatible with various heating block or reaction vessels for a variety of application scenario
Ultra space-saving with 4/6 channel integrated in one instrument
“HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
Reliable safety mechanism, compliant to IEC61010-1\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.
Product Applications：
Preparation and dissolution of buffers, reagents, and culture media samples; rapid screening of experimental conditions; parallel experiments for teaching and demonstration of basic laboratory procedures; rapid sample concentration and drying; pre-treatment for analytical testing; pre-treatment of environmental water samples, soil, and pollutant samples.
Target Customers：
R&D staff and QC inspectors in petrochemical, pharmaceutical, and food testing laboratories; government inspectors at environmental monitoring stations, food, and drug inspection institutes.

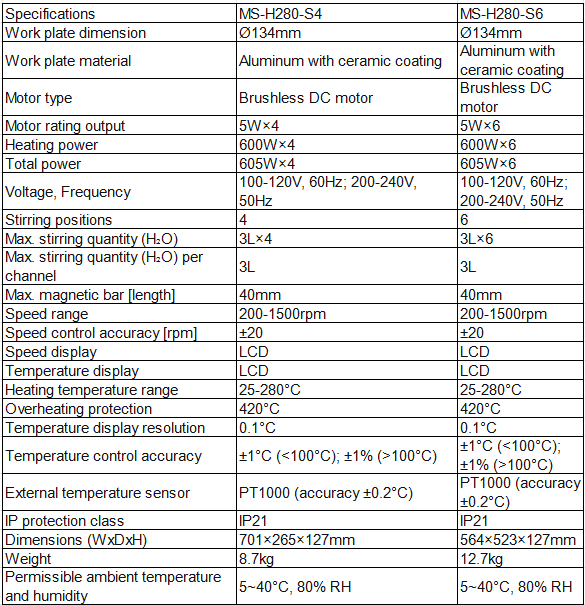

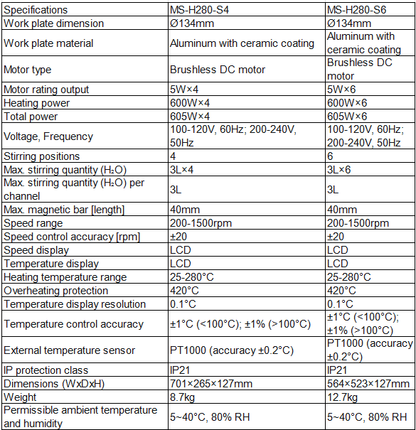

PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: MS-H280-S4
Work plate dimension: Ø134mm
Work plate material: Aluminum with ceramic coating
Motor type: Brushless DC motor
Motor rating output: 5W×4
Heating power: 600W×4
Total power: 605W×4
Voltage, Frequency: 100-120V, 60Hz; 200-240V, 50Hz
Stirring positions: 4
Max. stirring quantity (H₂O): 3L×4
Max. stirring quantity (H₂O) per channel: 3L
Max. magnetic bar [length]: 40mm
Speed range: 200-1500rpm
Speed control accuracy [rpm]: ±20
Speed display: LCD
Temperature display: LCD
Heating temperature range: 25-280°C
Overheating protection: 420°C
Temperature display resolution: 0.1°C
Temperature control accuracy: ±1°C (<100°C); ±1% (>100°C)
External temperature sensor: PT1000 (accuracy ±0.2°C)
IP protection class: IP21
Dimensions (WxDxH): 701×265×127mm
Weight: 8.7kg
Permissible ambient temperature and humidity: 5~40°C, 80% RH
Specifications: MS-H280-S6
Work plate dimension: Ø134mm
Work plate material: Aluminum with ceramic coating
Motor type: Brushless DC motor
Motor rating output: 5W×6
Heating power: 600W×6
Total power: 605W×6
Voltage, Frequency: 100-120V, 60Hz; 200-240V, 50Hz
Stirring positions: 6
Max. stirring quantity (H₂O): 3L×6
Max. stirring quantity (H₂O) per channel: 3L
Max. magnetic bar [length]: 40mm
Speed range: 200-1500rpm
Speed control accuracy [rpm]: ±20
Speed display: LCD
Temperature display: LCD
Heating temperature range: 25-280°C
Overheating protection: 420°C
Temperature display resolution: 0.1°C
Temperature control accuracy: ±1°C (<100°C); ±1% (>100°C)
External temperature sensor: PT1000 (accuracy ±0.2°C)
IP protection class: IP21
Dimensions (WxDxH): 564×523×127mm
Weight: 12.7kg
Permissible ambient temperature and humidity: 5~40°C, 80% RH
