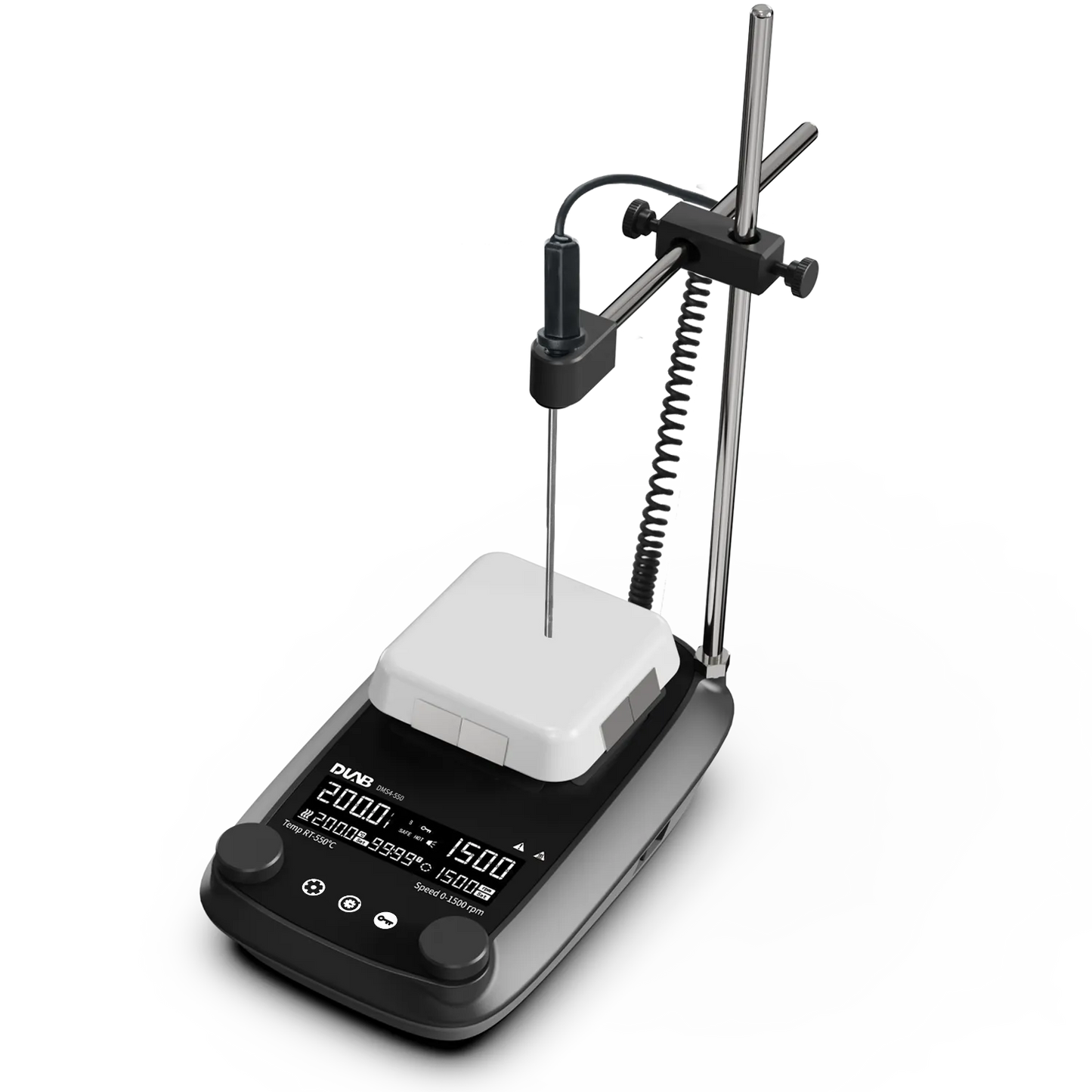

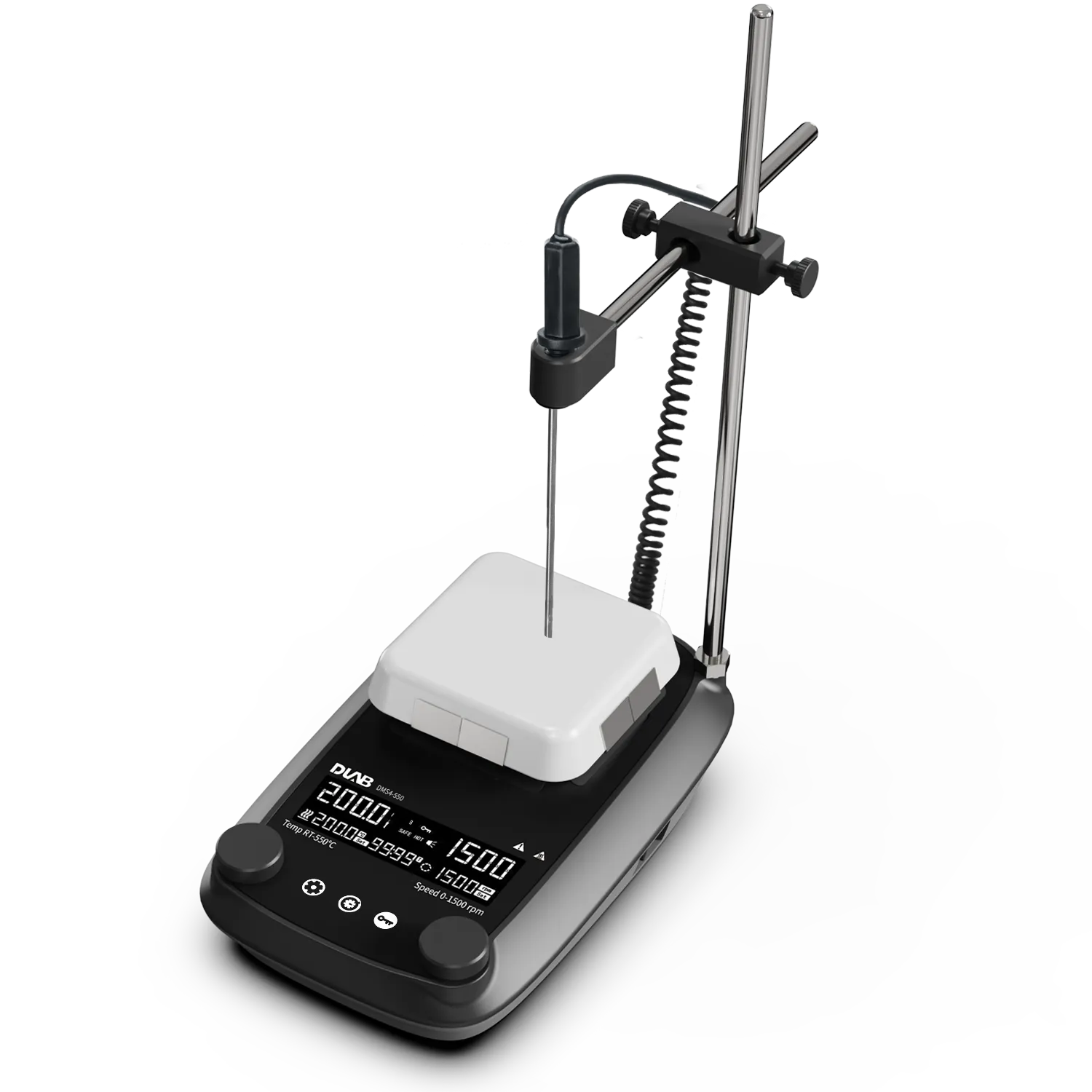

DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer
DMS4-550 LCD Glass Ceramic Heating Magnetic Stirrer with Timer
- The ceramic-coated plate offers excellent corrosion resistance, capable of withstanding strong acids, strong alkalis, and high temperatures. It is easy to clean spilled solvents, oils, or other contaminants.
- The corrosion-resistant full metal housing provides good heat dissipation and reliable fire protection.
- The efficient drainage platform and raised waterproof edge prevent liquids from entering the machine and corroding internal electronic components.
- Selected high-temperature resistant strong magnets provide powerful stirring force, suitable for mixing viscous liquids.
- The safety lock prevents accidental changes to the operating status.
- Buzzer: When a fault occurs or the timer countdown ends, the buzzer emits a "beep beep beep" alert sound.
- Residual heat warning function: When the plate temperature exceeds 50°C, heating is turned off and the screen displays a flashing “HOT” warning. Even after power-off, the display continues to flash “HOT” to indicate high temperature.
- Dual independent safety circuits continuously monitor the device. In the event of overheating or sensor failure, the machine shows an error and stops heating. If a short circuit occurs, the power is automatically cut off to ensure operator safety.
- The brushless DC motor is spark-free, long-lasting, low-noise, maintenance-free, and runs smoothly.
- The LCD displays both set and real-time values for speed, time, and temperature, providing clear and intuitive readouts.
- Timer function: Settable from 1 minute to 99 hours 59 minutes. When the countdown ends, heating stops but stirring continues, preventing thermal damage to samples.
- Remote control function is available, allowing connection to a computer.
- Safety temperature can be preset.
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Working plate size：100x100mm (4 inch)
Plate Material：Glass Ceramic
Motor type：Brushless DC motor
Stirring positions：1
Maximum stirring volume [H₂O]：10L
Maximum stirrer size [length]：40mm
Speed range and step：50~1500rpm, step 1rpm
Speed Display：LCD
Temperature display：LCD
Heating temperature range：Room temp-550℃, increment 1℃
Temperature control accuracy of heating liquid：±1℃ (<100℃) ±1% (>100℃)
overheating protection：580℃
Temperature display accuracy：0.1℃
External temperature sensor：PT1000 (accuracy ±0.2℃)
Waste heat warning function：50℃
Data connection：RS232
Protection class：IP21
Timer function：1min-99h59min
Motor output power：10W
Power：460W
Heating output power：410W
Voltage,Frequency：100-120/200-240V, 50/60Hz
Dimensions [L×W×H]：270x175x108mm
Weight：2.2kg
Permissible ambient temperature and humidity：5-40℃, 80%RH
