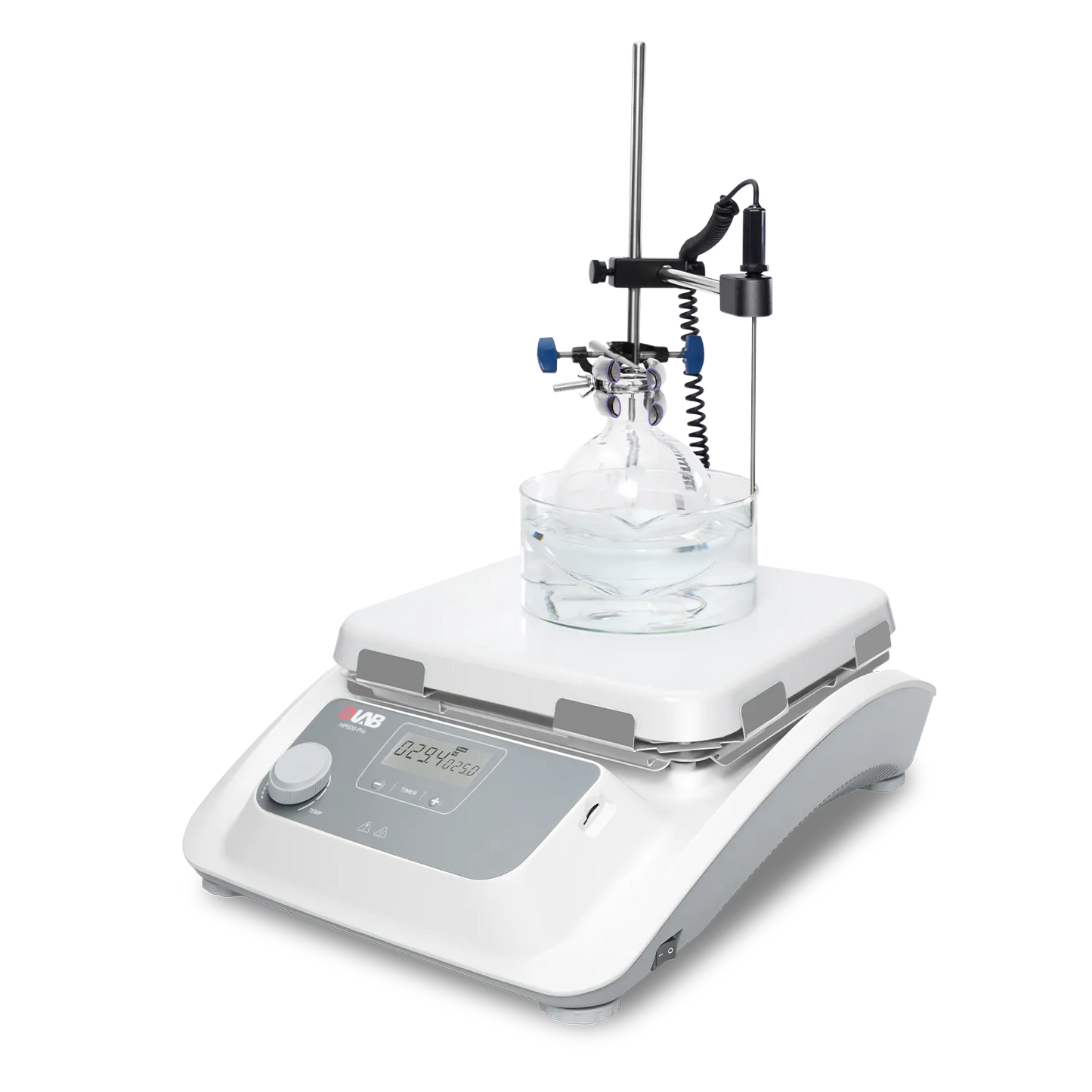

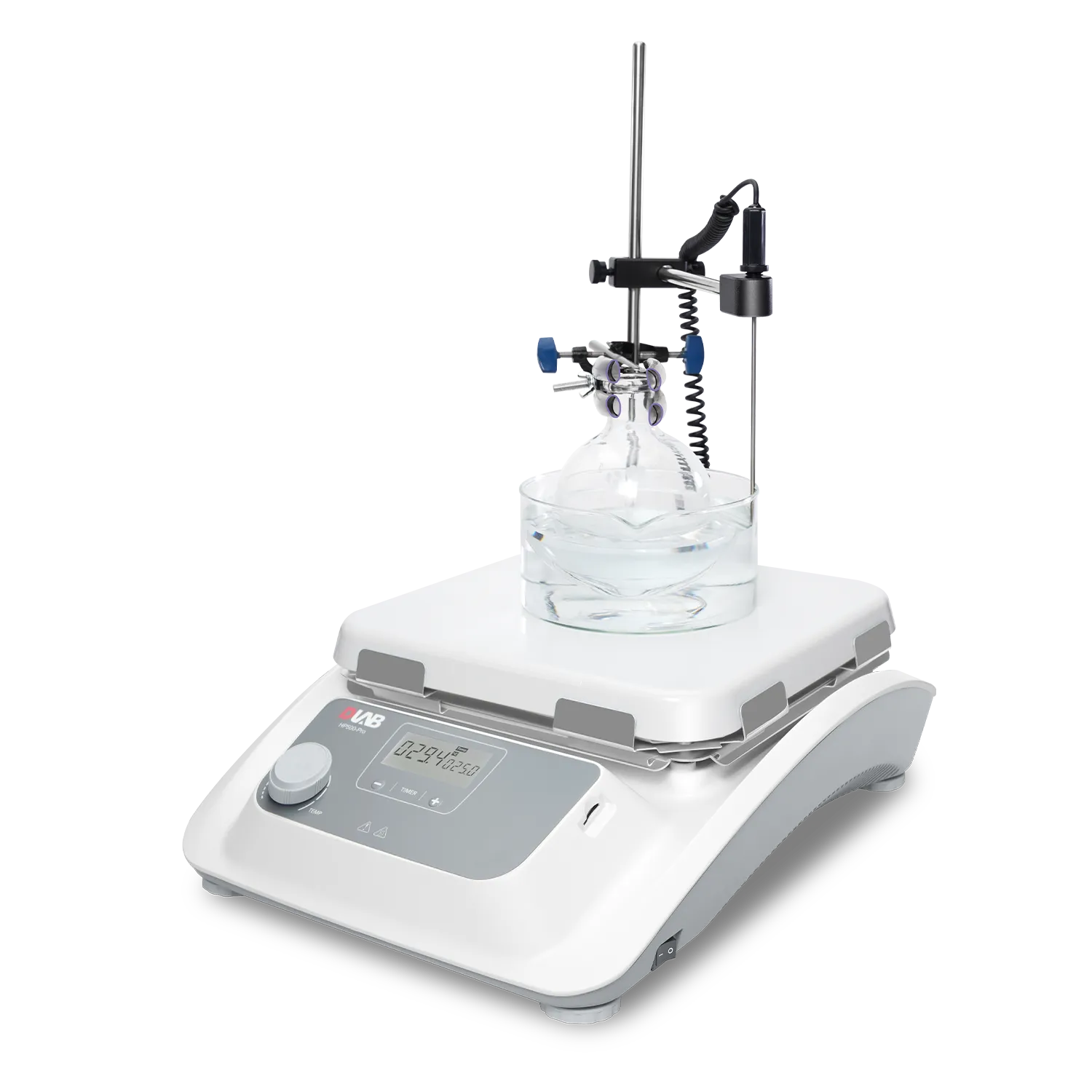

HP500-Pro LCD Digital Hotplate
HP500-Pro LCD Digital Hotplate
Product Features：
LCD screen shows temperature, Max. temperature up to 500℃
10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
External temperature control is possible by connecting the temperature sensor (PT
1000) with an accuracy at ±0.2°C
The “HOT”warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
Heating temperature: room temperature -500℃ .
Data connector : The SD card records the instrument's running data in real time.
Timing function: the running time of the instrument can be set.
Product Applications：
High-boiling acid digestion of minerals; preparation of nanomaterials and inorganic materials; sample ashing and sintering of metal catalysts; rapid removal of high-boiling solvents and sample drying; rapid sample concentration and drying; pre-treatment for analytical testing; pre-treatment of environmental water samples, soil, and pollutant samples.
Target Customers：
R&D laboratories in mineral processing and metallurgical production industries; environmental monitoring stations for heavy metal pollutants in soil and water; university research laboratories in petrochemical and functional materials; R&D laboratories for battery electrode materials.
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: HP500-Pro
Work plate Dimension [W x D]: 254x254mm (10 inch)
Work plate material: Glass ceramic
Heating position: 1
Heating temperature range: Room Temp.-500°C, increment 1°C
Temperature control accuracy: ±1°C (<100°C) ±1% (>100°C)
Safety temperature: 540°C
Temperature,time display: LCD
Timer function: 1min-99h59min
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000(±0.2°C)
"Hot" warning: 50°C
Protection class: IP20
Power: 1700W
Heating output: 1500W
Voltage,Frequency: 100-120/200-240V, 50/60Hz
Dimension[WxDxH]: 328x424x138mm
Weight: 7.2kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
