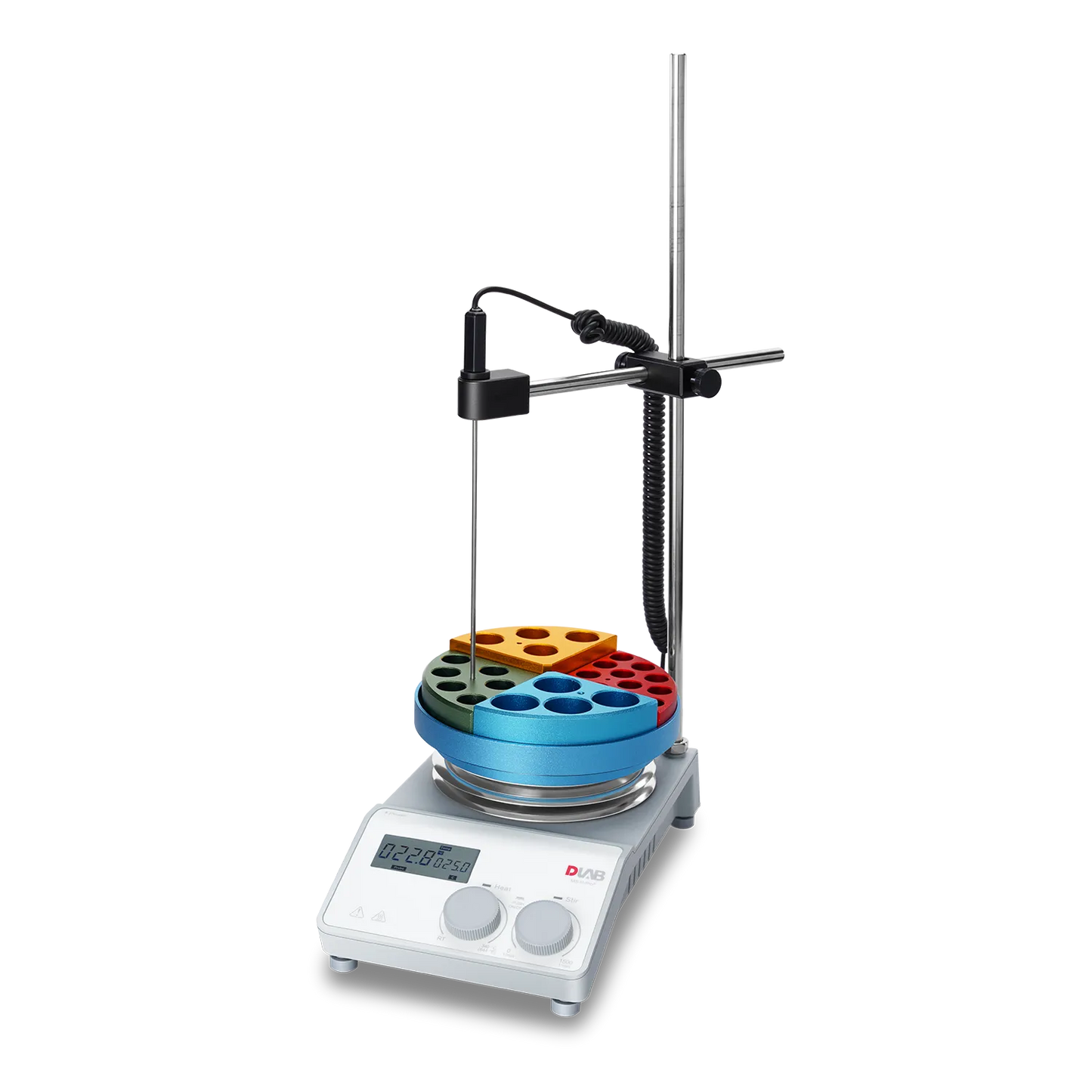

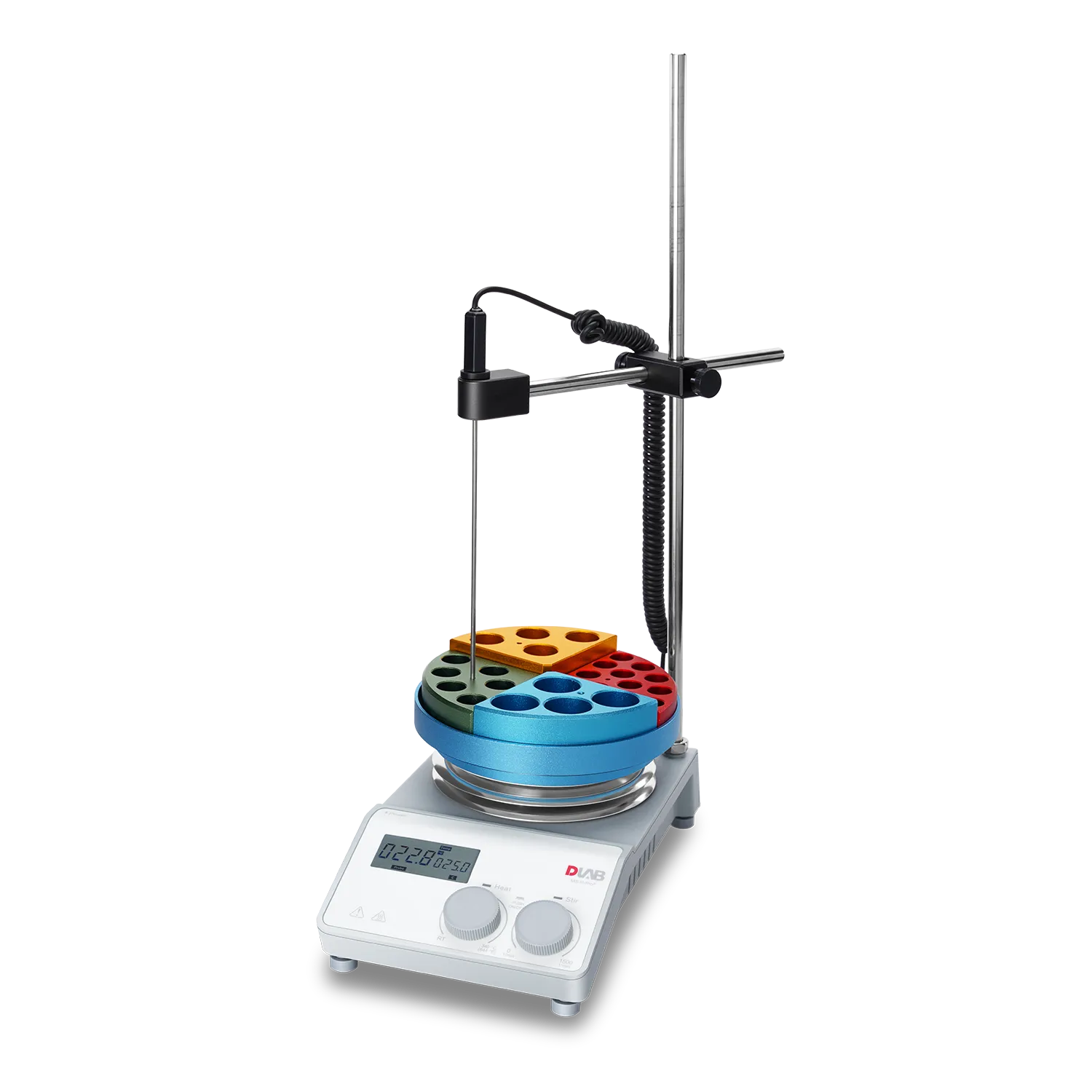

MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
MS-H-Pro+ LCD Digital Magnetic Hotplate Stirrer
- DC brushless motor free of maintenance and spark, and with long service life
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- "HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
- External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
- Work plate with ceramic coating provides good chemical-resistantperformance
- Remote function provides PC control and data transmission
- Wide variety of accessories available to choose
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: MS-H-PRO+
Work plate Dimension [W x D]: Ø135mm (5 inch)
Workplate material: stainless steel cover with ceramic coating
Motor type: Brushless DC motor
Stirring positions: 1
Max. stirring quantity, [H2O]: 20L
Max. magnetic bar [length]: 80mm
Speed range: 100-1500rpm resolution ±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room Temp. -340°C, increment 1°C
Heating liquid temperature control accuracy: ±1°C(<100°C) ±1%(<100°C)
Overheating temperature protection: 420°C
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000 (accuracy ±0.2°C)
"Hot" warning: 50°C
Data connector: RS232
Protection class: IP21
Timer function: -
Motor rating output: 10W
Power: 550W
Heating output: 500W
Voltage, Frequency: 100-120/200-240V, 50/60Hz
Dimension [WxDxH]: 160x280x100mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
