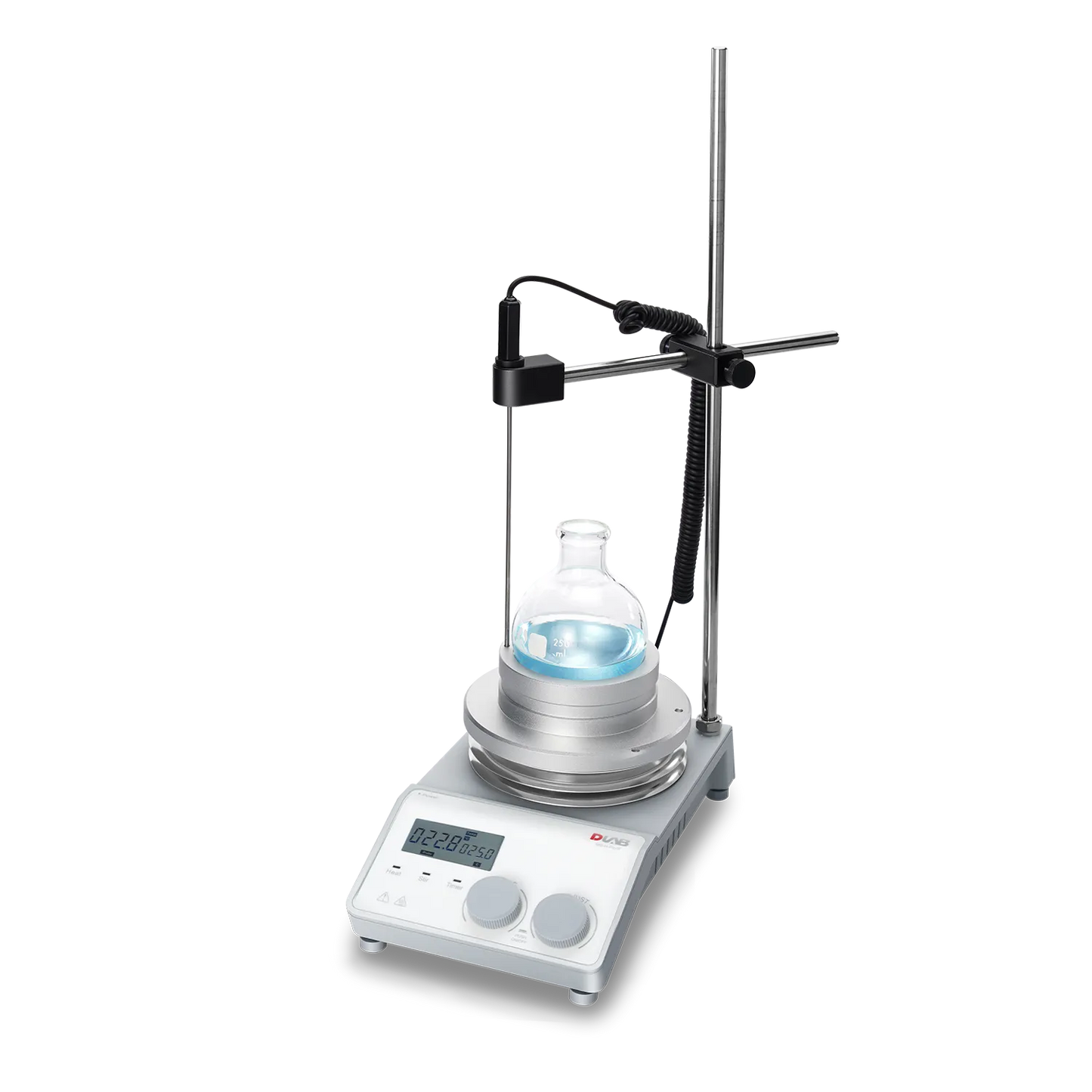

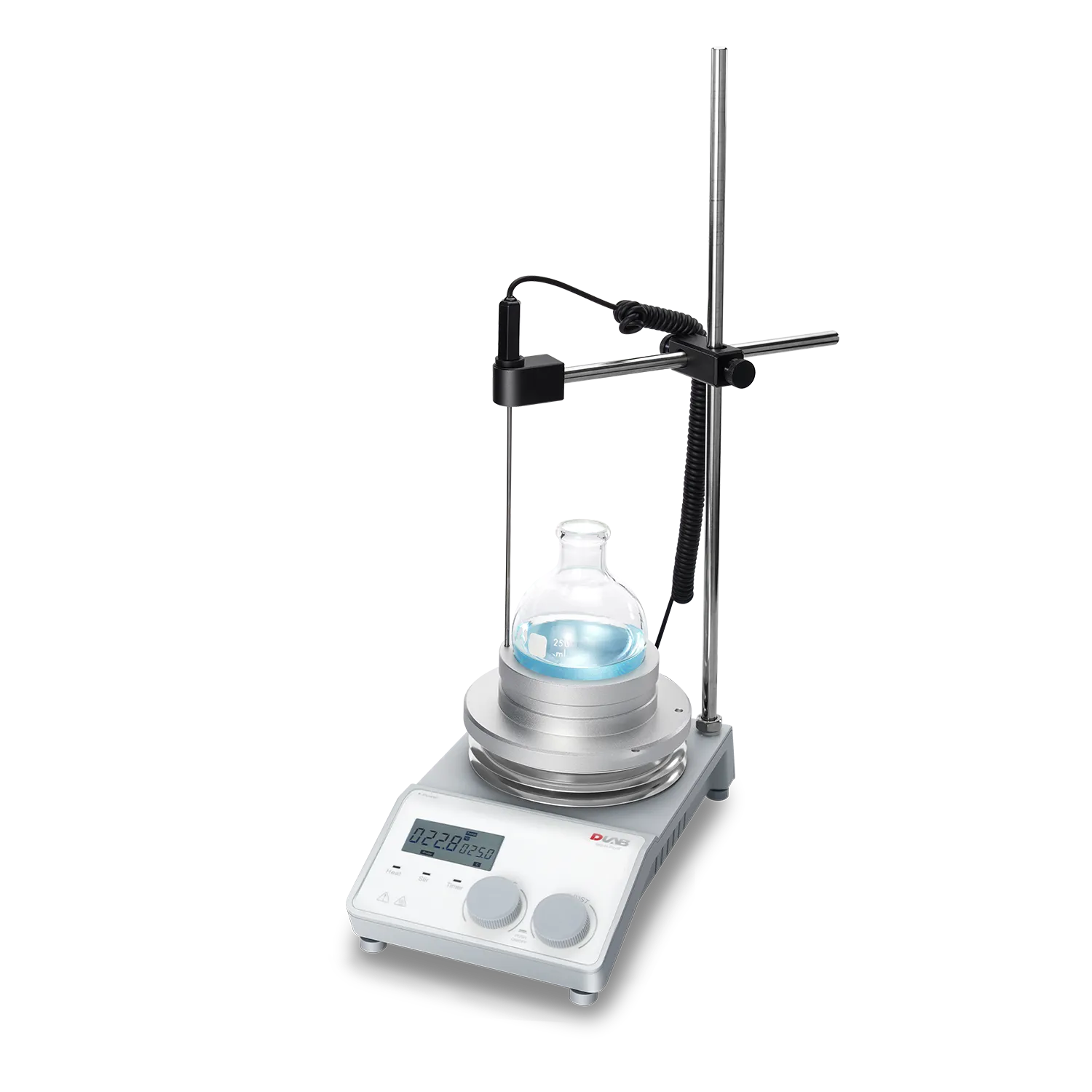

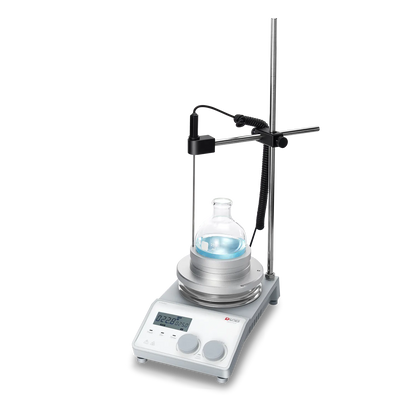

MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
Product Features：
Enhanced magnets and powerful motors for outstanding performance in the stirring of viscous liquid.
Smooth acceleration and deceleration for stable running without spillage
Timer control from 1 minute to 99 hours and 59 minutes. When the time countdown completes, it will keep stirring but turn off heating to keep the sample safe from heat damage.
Three heating modes for different demands: A) Fast heating; B) Standard heating; C) Steady heating.
“HOT” warning flashes on the LCD display if the work plate tempe rature is above 50 °C after the user turn off the power switch.
Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
Can be connected to PC with remote control.
Product Applications：
Synthesis of organic intermediates and fine chemicals; study of organic methodologies; reaction condition screening and scale-up optimization; thermal stability testing of biopharmaceuticals; undergraduate laboratory teaching; automated continuous flow reactions, etc.
Target Customers：
Researchers in organic synthesis, petrochemicals, functional materials, and pharmaceutical intermediates in universities and research institutes; R&D and QC staff in petrochemical, pharmaceutical, and food testing laboratories; government inspectors at environmental monitoring stations and food & drug inspection institutes

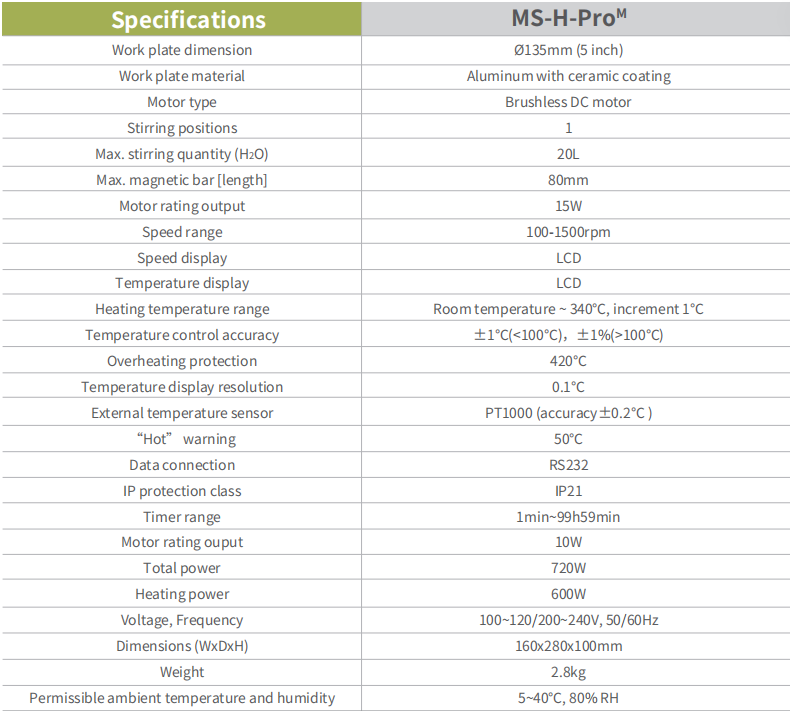

PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: MS-H-Pro™
Work plate dimension: Ø135mm (5 inch)
Work plate material: Aluminum with ceramic coating
Motor type: Brushless DC motor
Stirring positions: 1
Max. stirring quantity (HzO): 20L
Max. magnetic bar [length]: 80mm
Motor rating output: 15W
Speed range: 100-1500rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room temperature ~ 340°C, increment 1°C
Temperature control accuracy: ±1°C(<100°C), ±1%(>100°C)
Overheating protection: 420°C
Temperature display resolution: 0.1°C
External temperature sensor: PT1000 (accuracy±0.2°C)
Hot warning: 50°C
Data connection: RS232
IP protection class: IP21
Timer range: 1min~99h59min
Motor rating output: 10W
Total power: 720W
Heating power: 600W
Voltage, Frequency: 100~120/200~240V, 50/60Hz
Dimensions (WxDxH): 160x280x100mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5~40°C, 80% RH
