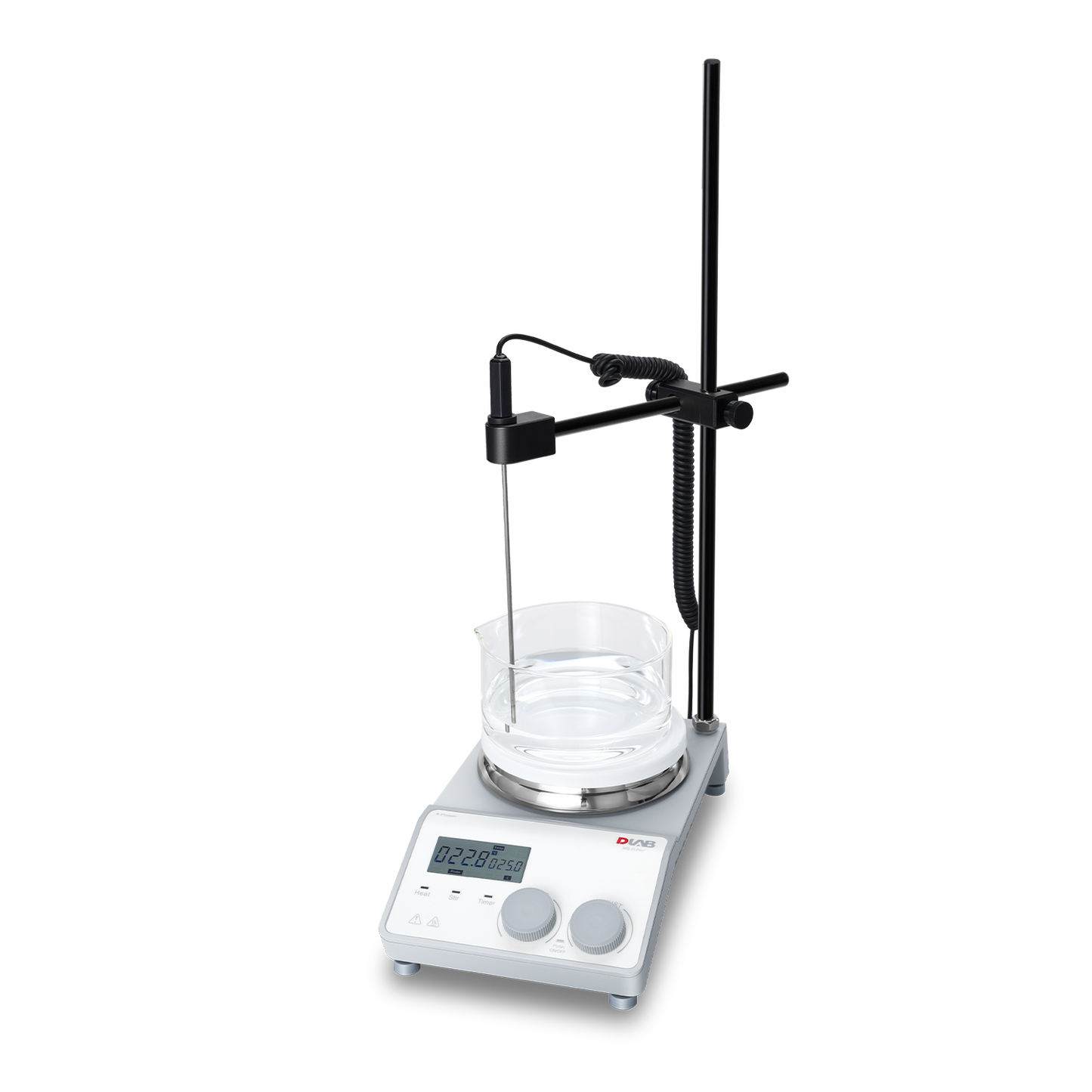

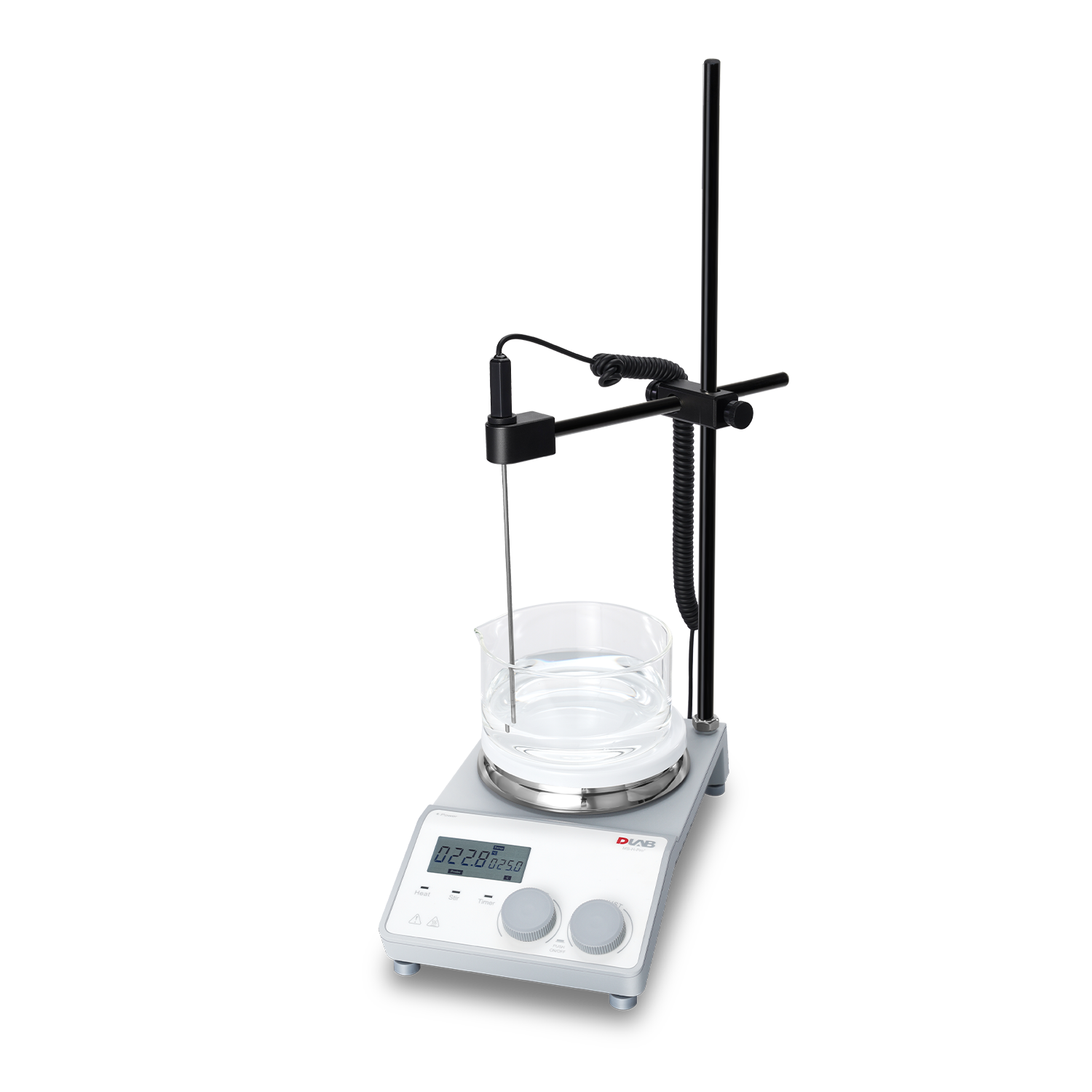

MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer
MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer
Product Features：
Brushless DC motor is maintenance free and explosion-proof
Digital temperature control with max. temperature at 340°C
Digital speed control with max. speed up to 1500rpm
Max. stirring quantity of H2O at 20L
Safety circuits provide overheating protection
The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
Wide range timer function from 1min to 99h59min
High-resolution LCD display shows actual temperatures，speed and time
External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
Stainless steel work plate with ceramic coating provides good chemical-resistant performance
Remote function provides PC control and data transmission
A wide variety of accessories are available
Product Applications：
Synthesis of organic intermediates and fine chemicals; study of organic methodologies; reaction condition screening and scale-up optimization; thermal stability testing of biopharmaceuticals; undergraduate laboratory teaching; automated continuous flow reactions, etc.
Target Customers：
Researchers in organic synthesis, petrochemicals, functional materials, and pharmaceutical intermediates in universities and research institutes; R&D and QC staff in petrochemical, pharmaceutical, and food testing laboratories; government inspectors at environmental monitoring stations and food & drug inspection institutes
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: MS-H-PROT
Work plate Dimension [W x D]: Ø135mm (5 inch)
Workplate material: stainless steel cover with ceramic coating
Motor type: Brushless DC motor
Stirring positions: 1
Max. stirring quantity, [H2O]: 20L
Max. magnetic bar [length]: 80mm
Speed range: 100-1500rpm resolution ±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room Temp. -340°C, increment 1°C
Heating liquid temperature control accuracy: ±1°C(<100°C) ±1%(<100°C)
Overheating temperature protection: 420°C
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000 (accuracy ±0.2°C)
"Hot" warning: 50°C
Data connector: RS232
Protection class: IP21
Timer function: 1min to 99h59min
Motor rating output: 10W
Power: 550W
Heating output: 500W
Voltage, Frequency: 100-120/200-240V, 50/60Hz
Dimension [WxDxH]: 160x280x100mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
