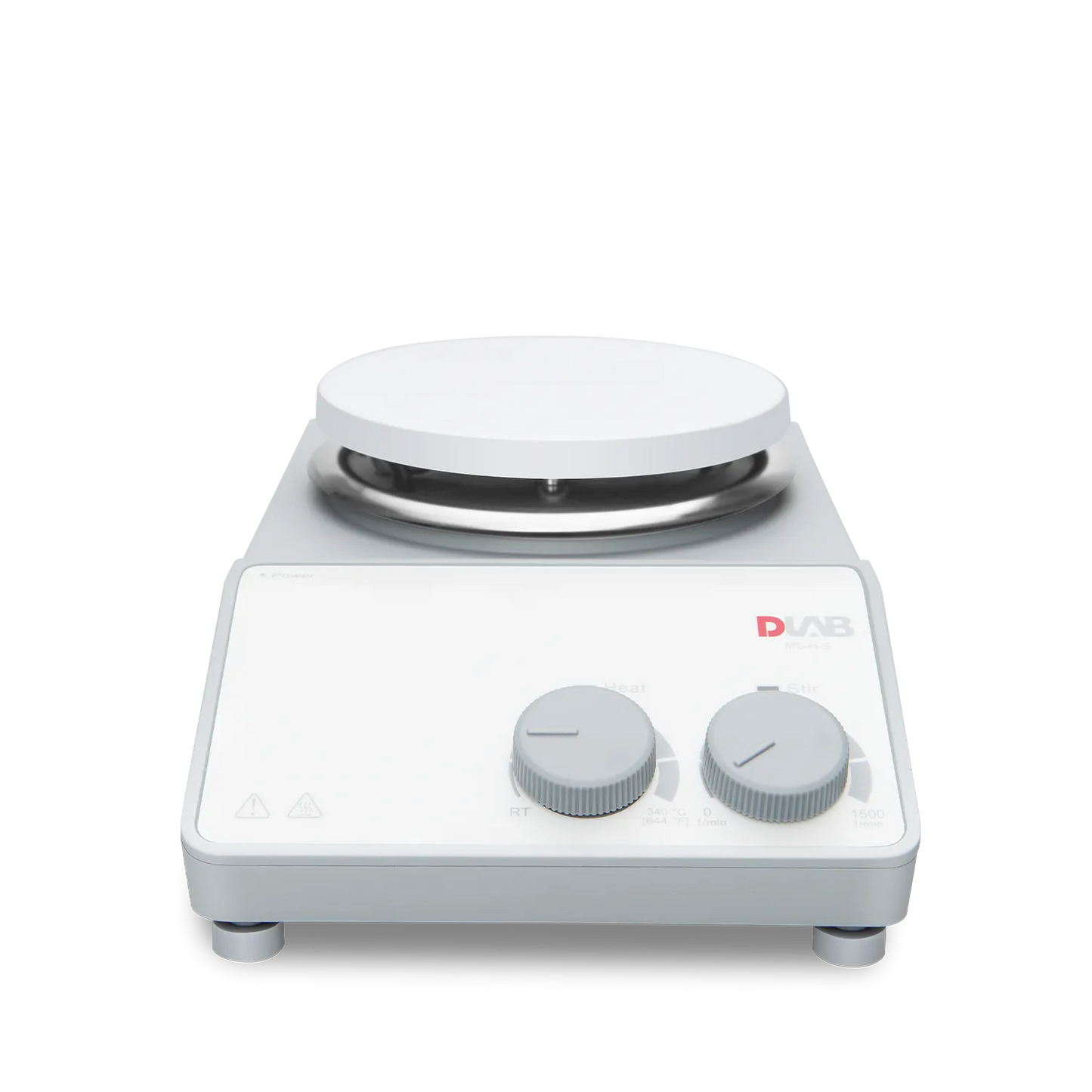

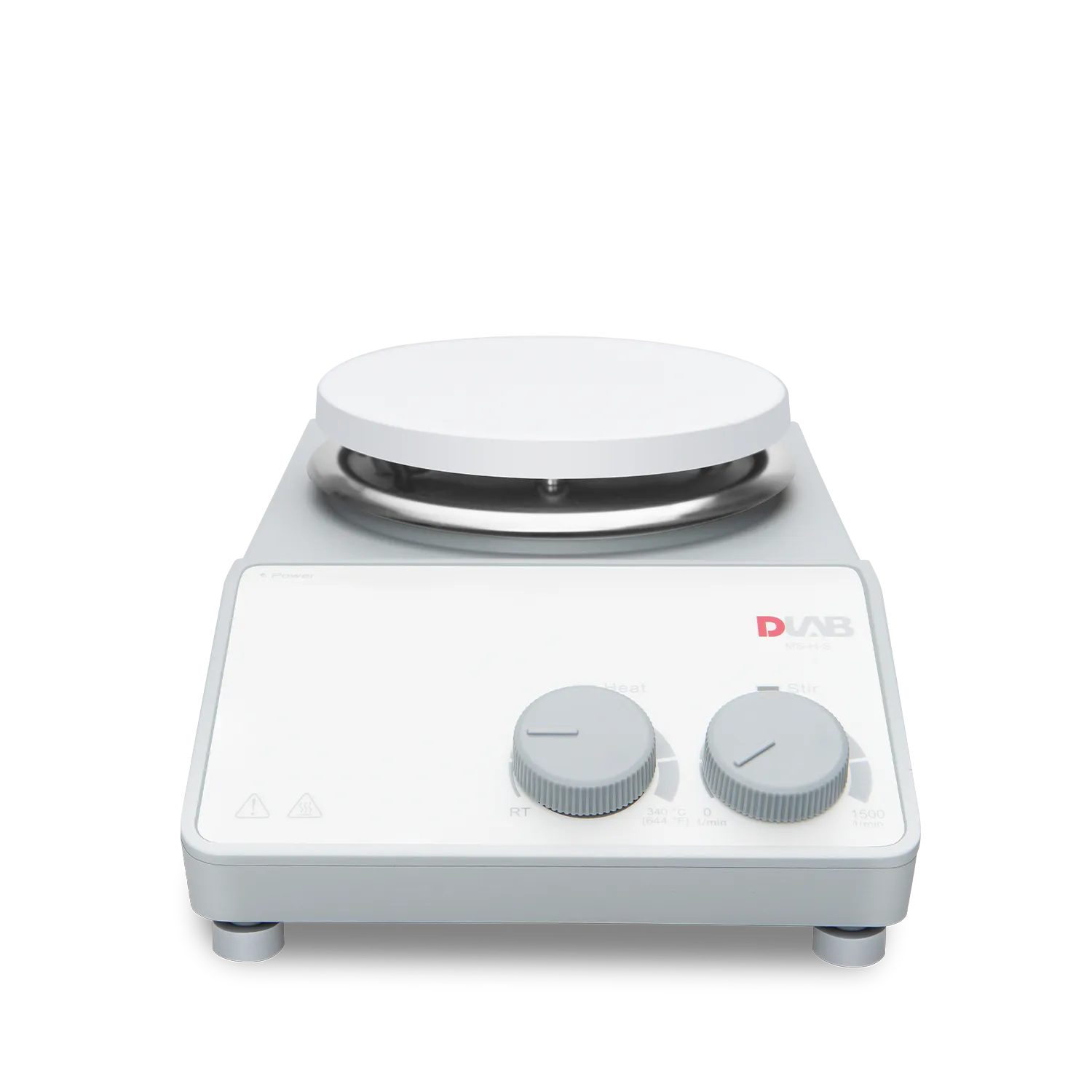

MS-H-S Security Analog Magnetic Hotplate stirrer
MS-H-S Security Analog Magnetic Hotplate stirrer
Product Features：
Brushless DC motor is maintenance free and explosion-proof
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
Work plate with ceramic coating provides good chemical-resistantperformance
Wide variety of accessories available to choose
Product Applications：
Preparation and dissolution of buffers, reagents, and culture media; teaching and basic laboratory experiments; pre-treatment for sample analysis
Target Customers：
Biologists, quality control, and analytical laboratory staff; R&D and QC staff in petrochemical, pharmaceutical, and food testing laboratories
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: MS-H-S
Work plate Dimension [W x D]: Ø135mm (5 inch)
Workplate material: stainless steel cover with ceramic coating
Motor type: Brushless DC motor
Stirring positions: 1
Max. stirring quantity, [H2O]: 20L
Max. magnetic bar [length]: 80mm
Speed range: 0-1500rpm
Speed display: Scale
Temperature display: Scale
Heating temperature range: Room Temp. -340°C
Heating liquid temperature control accuracy: ±1°C(<100°C) ±1%(<100°C)
Overheating temperature protection: 420°C
Temperature display accuracy: -
External temperature sensor: -
"Hot" warning: -
Data connector: -
Protection class: IP21
Timer function: -
Motor rating output: 10W
Power: 530W
Heating output: 500W
Voltage, Frequency: 100-120/200-240V, 50/60Hz
Dimension [WxDxH]: 160x280x100mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
