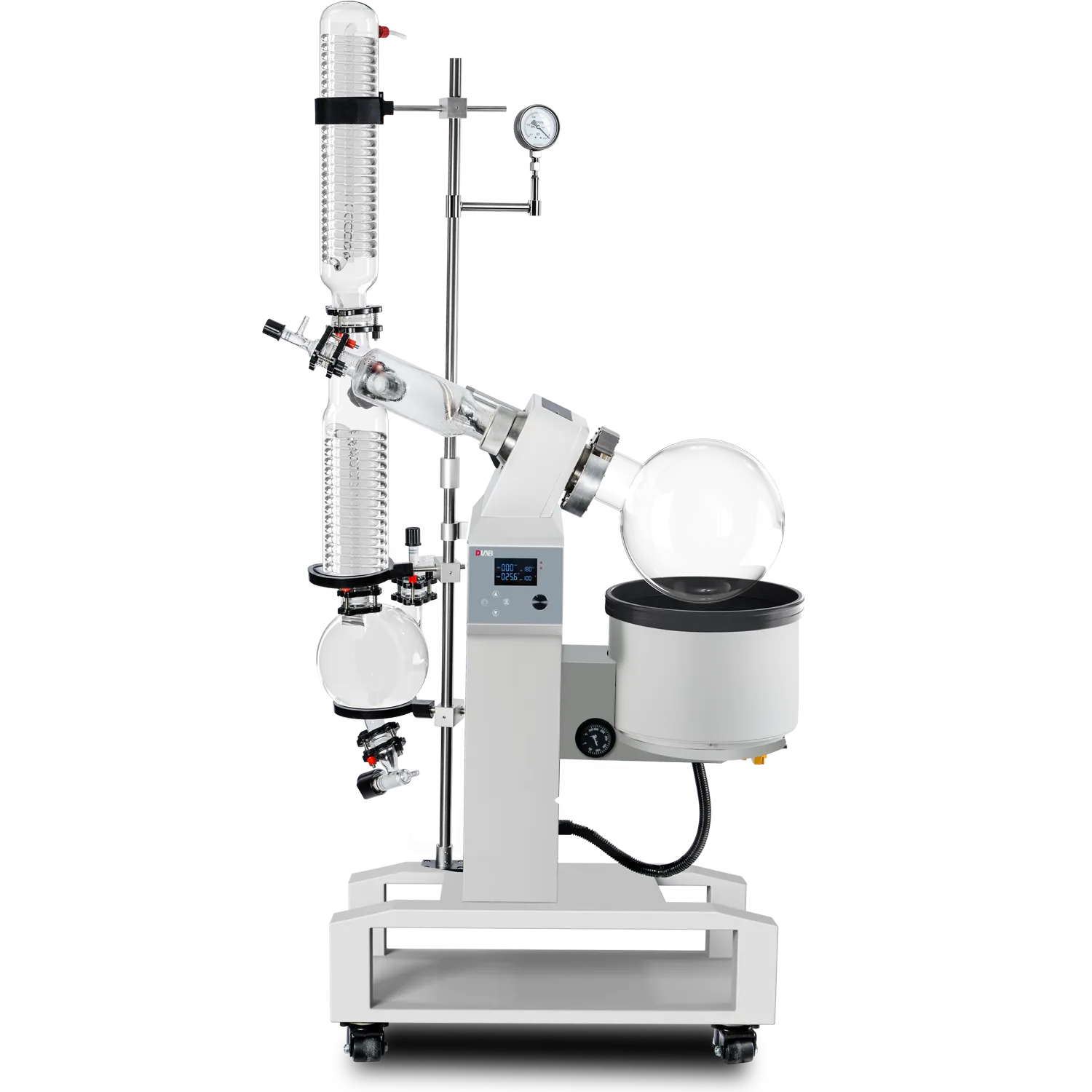

RE5000-E Pilot Scale Digital Control Rotary Evaporator
RE5000-E Pilot Scale Digital Control Rotary Evaporator
- LCD digital display with intuitive interface for operation and control.
- PID controller, precise control, fast setting.
- Stepless automatic motor lifting of the heat bath, smooth and silent.
- The reciprocation rotation function is the most useful for concentration of sample with power or solid particles.
- Double-layer high-efficiency condenser with anti-backflow design, large condensation surface area, strong evaporation capacity is a guarantee of high efficient sample recovery.
- Professional air tightness system design with PTFE sealing ring, featured with heat/corrosion resistance, and high durability.
- Optional vacuum controller to control the vacuum degree freely.
- Keep the outer surface of the heat bath at mild temperature with proprietary heat insulation design to avoid accidental personnel burn injury.
- Equipped with automatic switching valve, continuous collection can be carried out without affecting the negative pressure index of the system and solvent distillation.
- Optional water bath/oil bath heating mode (standard water bath).
- Solution can be continuously fed into evaporating flask.
- Digital display steam temperature sensing device can feed back the solvent steam temperature in real time
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Model: RE5000-E
Evaporation flash volume: 50L
Speed range: 20-130
Display: LCD
Evaporation Capacity (Max.1/h) For 75% Alcohol: 11
Ultimate vacuum: 9 mbar
Timer: Yes
Temperature range: Water Bath：20- 100℃ Oil Bath：20-180℃（Optional）
Temperature control accuracy (°C): ±1
Heating Power (W): 5000
Temperature Display: LCD
Lifting mode: Motorized
Lifting Stroke (mm): 253
Water Bath Volume: 60L
Total Power: 5200W
Time Setting Range: 0-999min
Voltage: 220V
Frequency (Hz): 50/60
Motor: Brushless DC motor
Heat Bath: Teflon coating
Protection Class: IP20
Dimension (D×W×H): 1030*510*1370
Permissible ambient temperature (°C): 5-40
Permissible ambient humidity: ≤80%
Safety features: Motor over current protection, earth leakage protection, dry heating protection, overheat protection function
