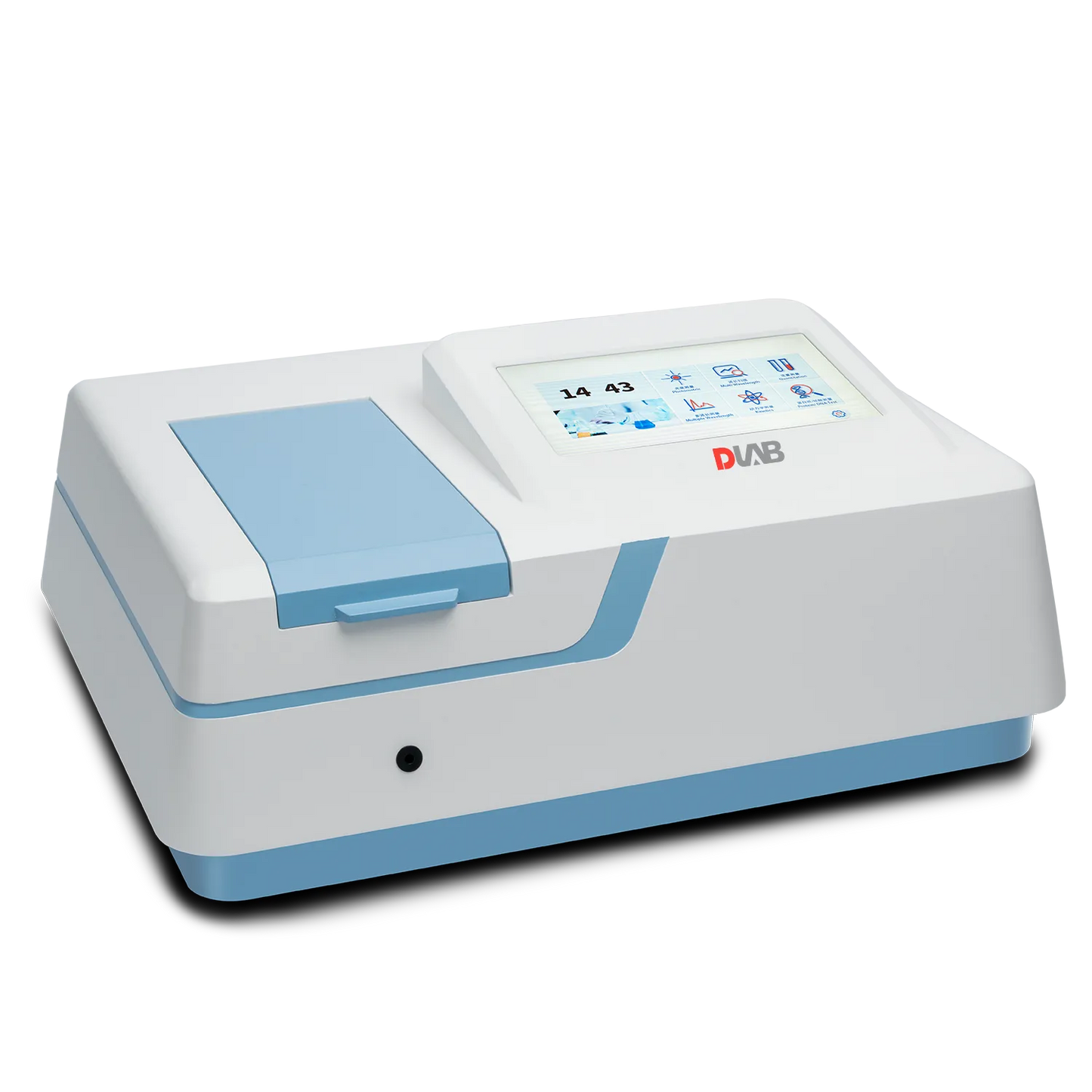

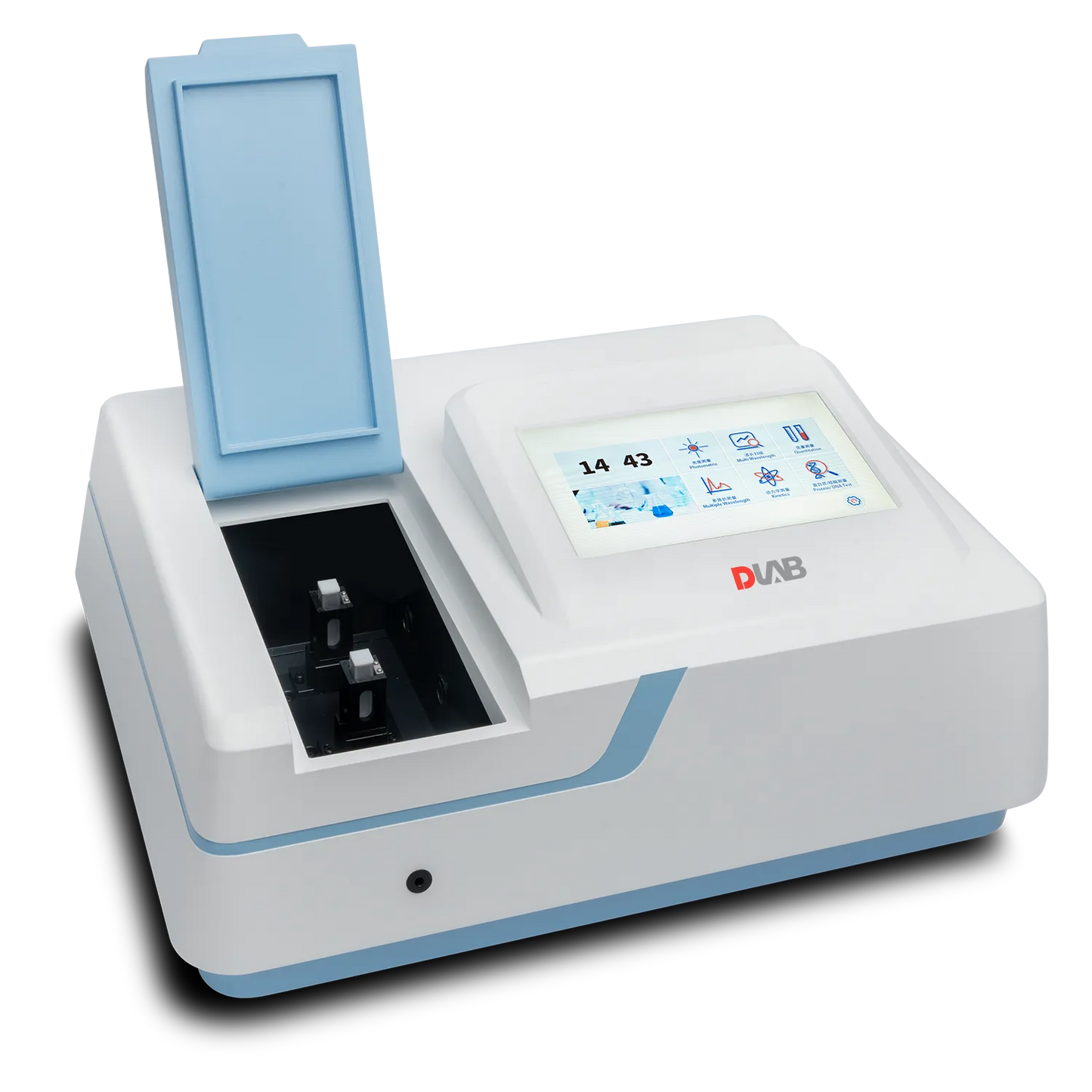

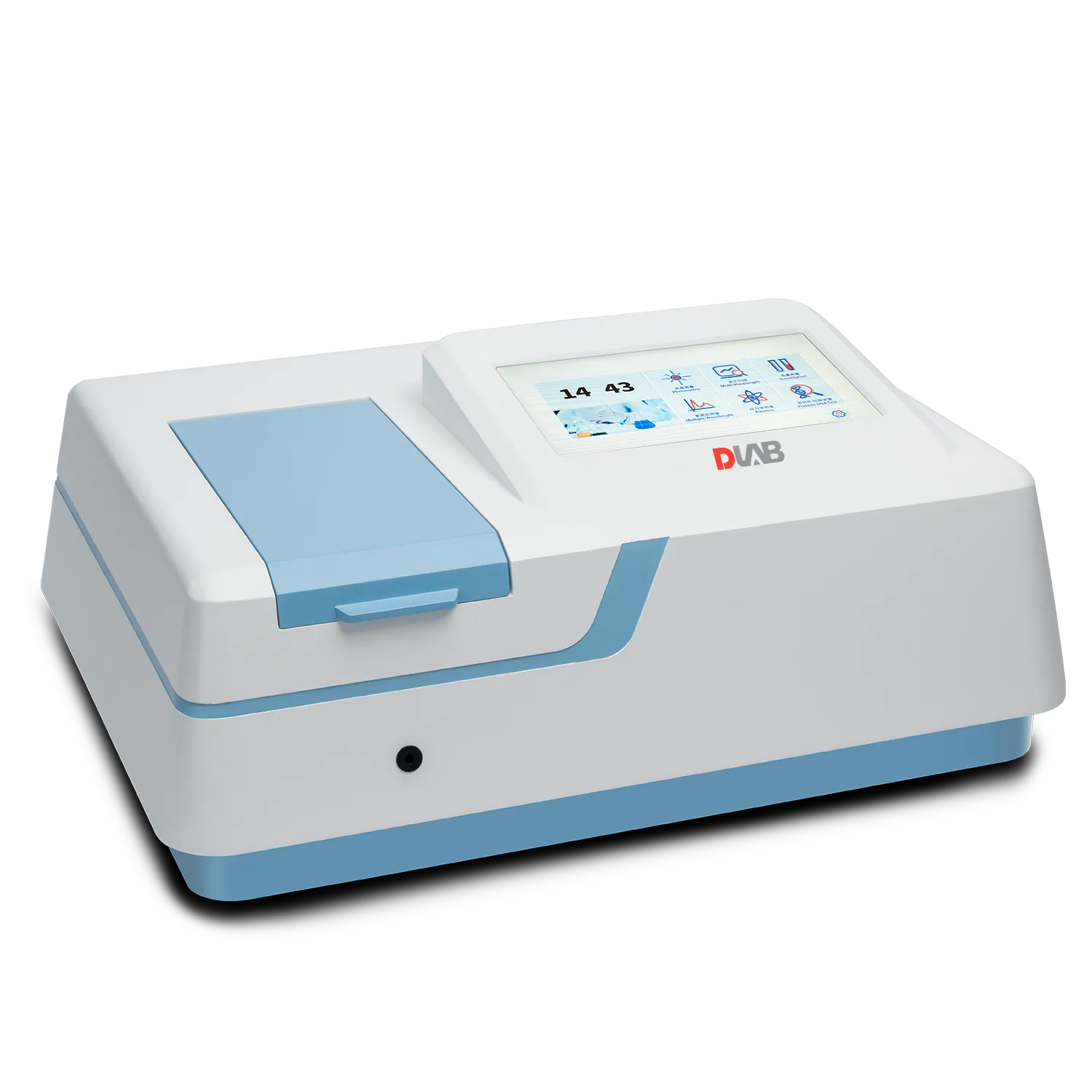

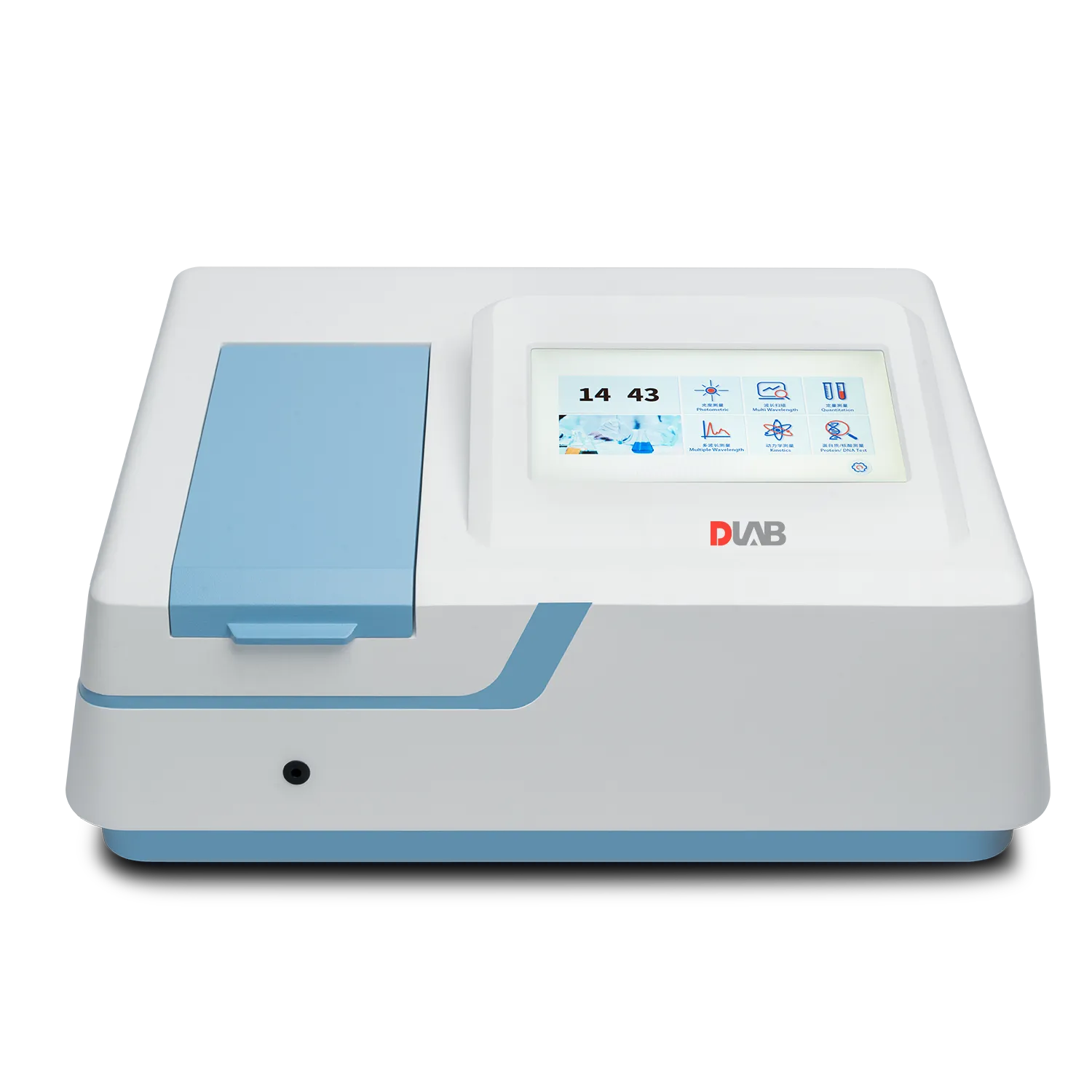

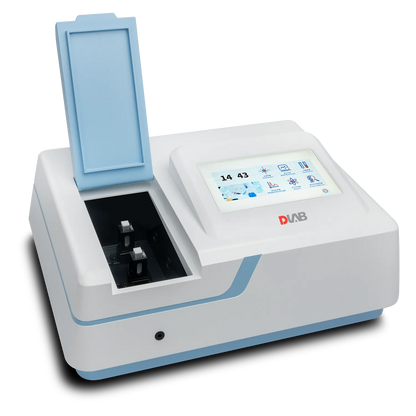

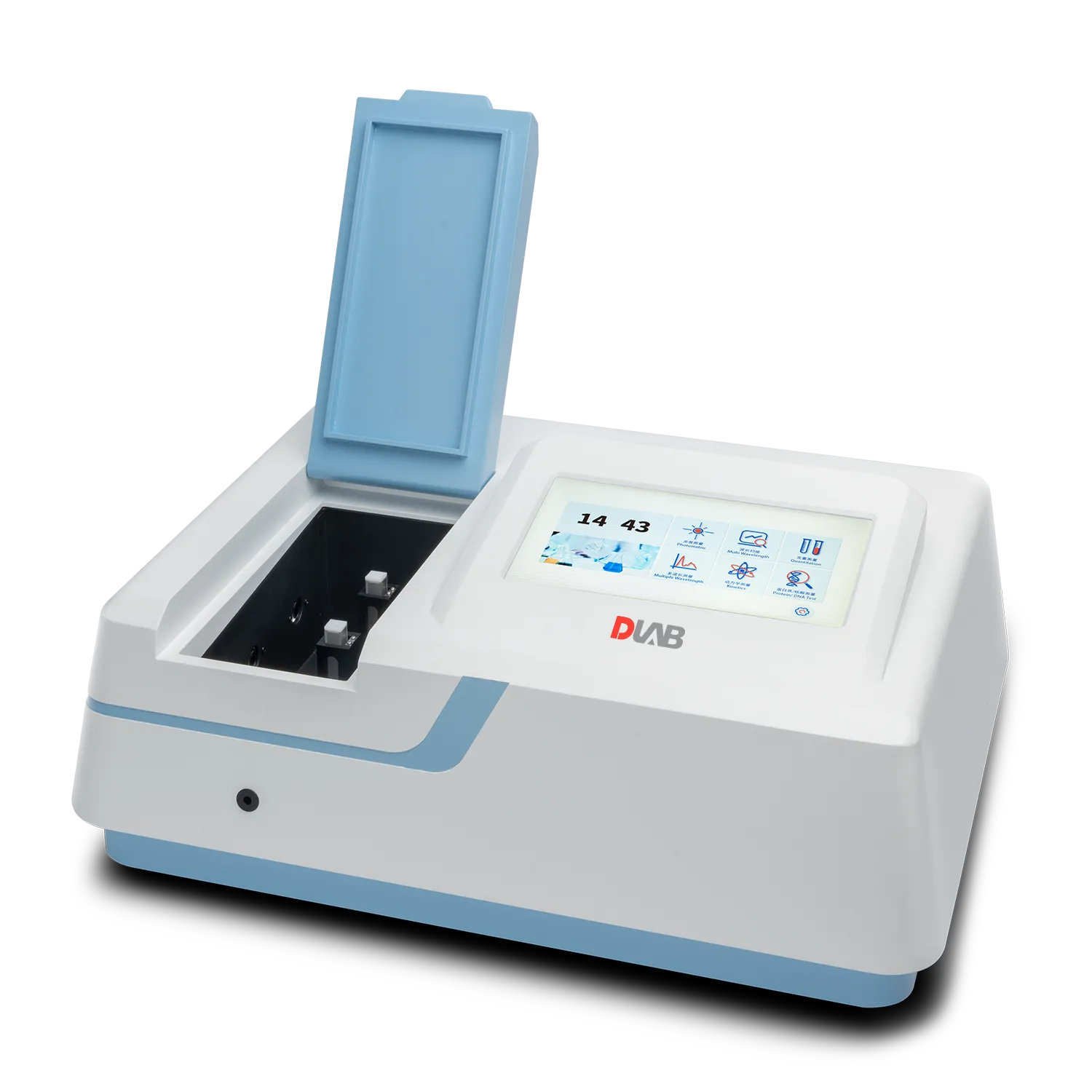

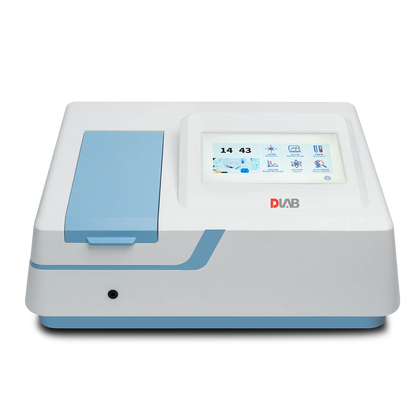

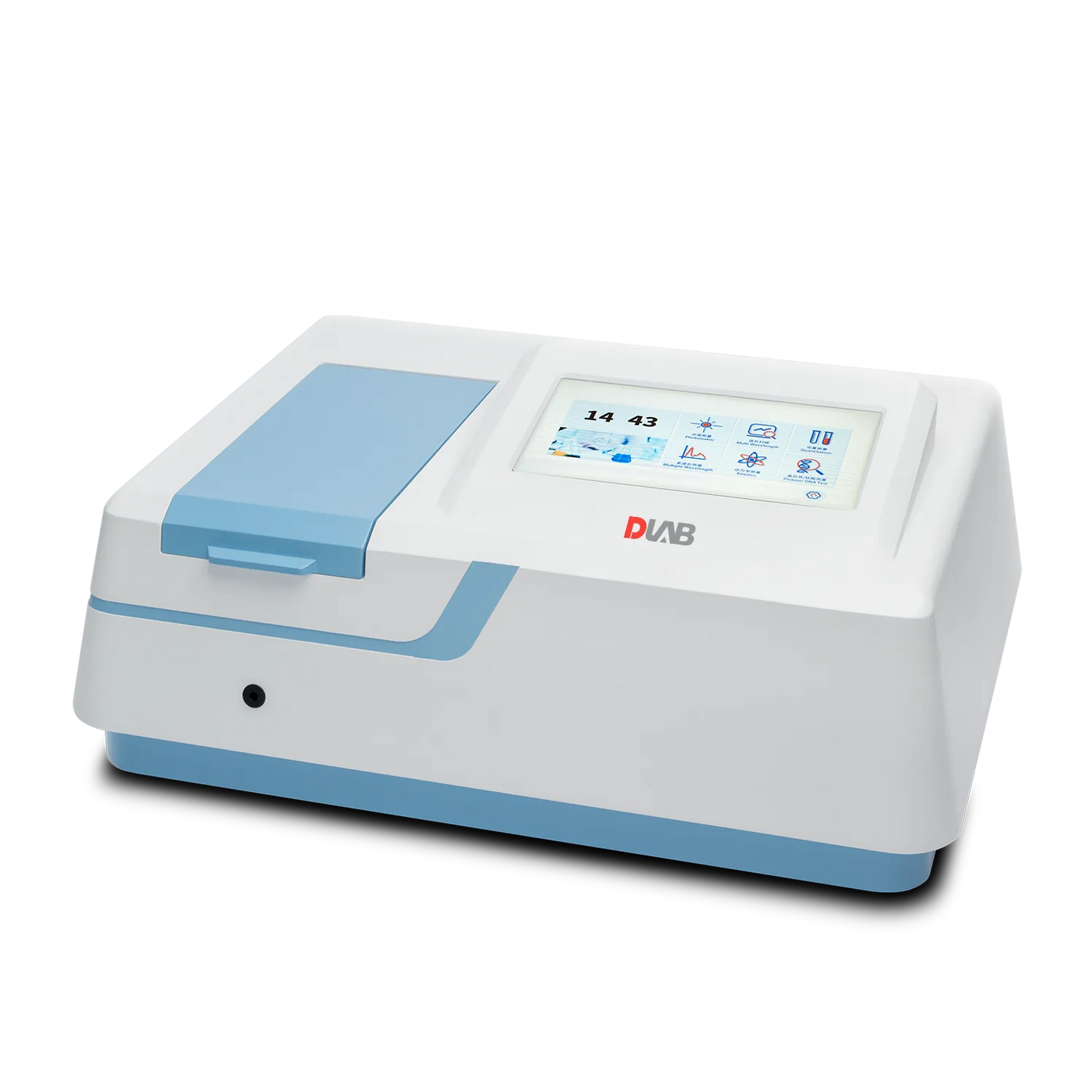

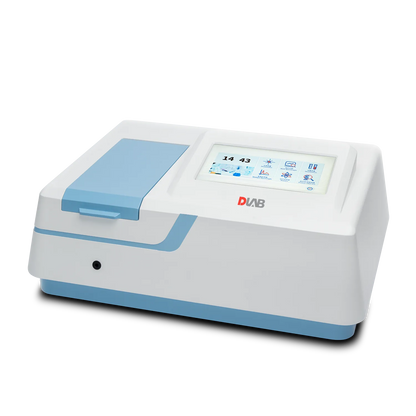

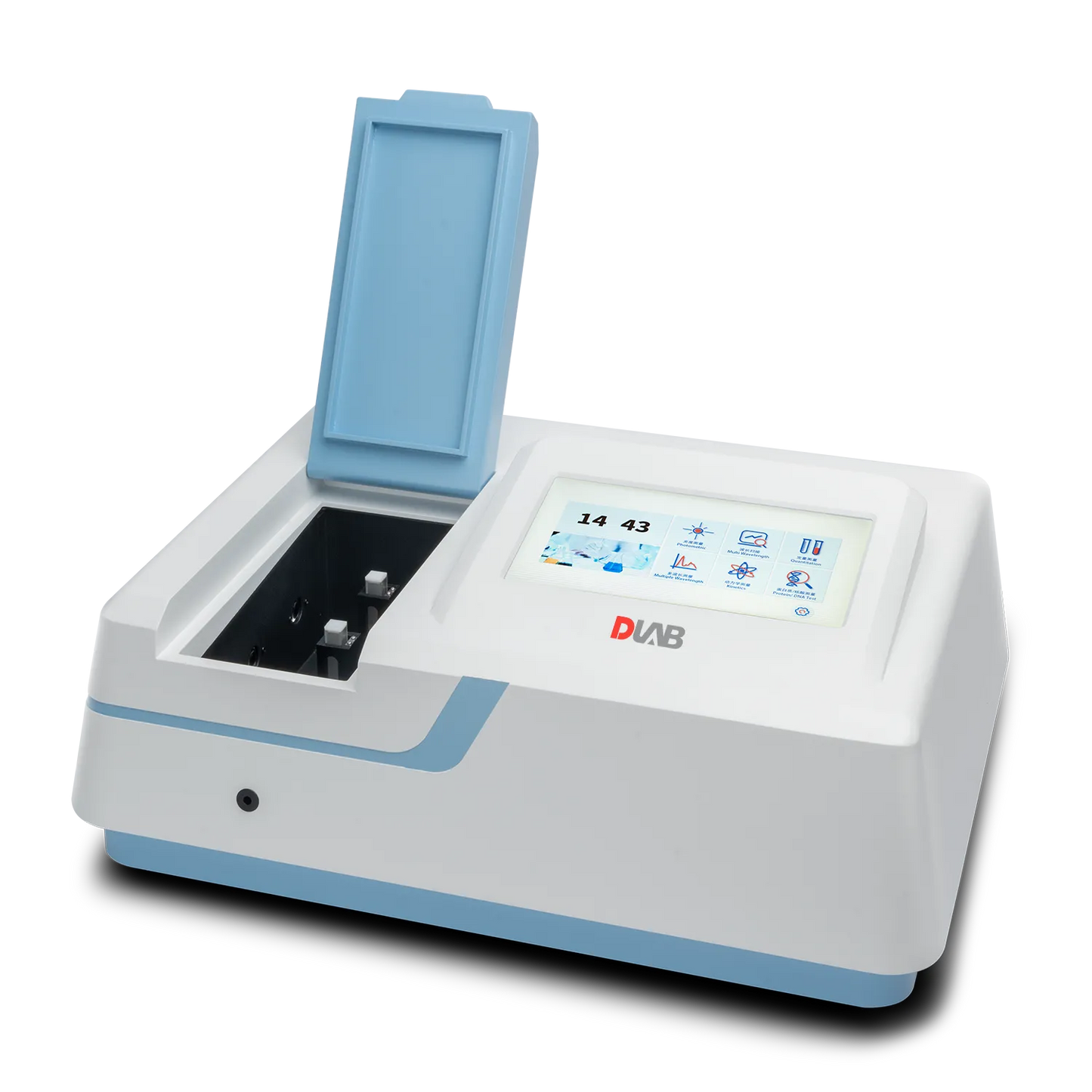

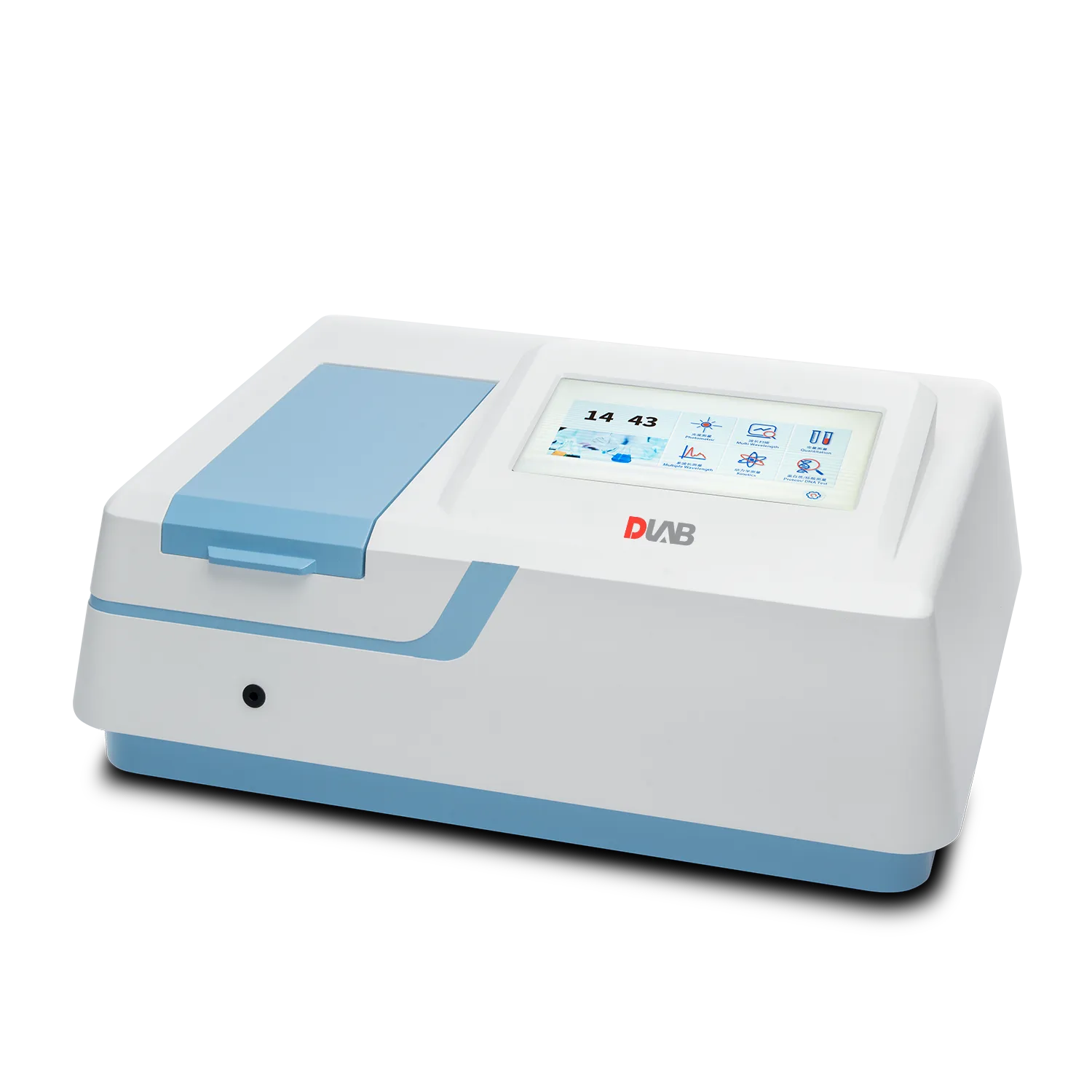

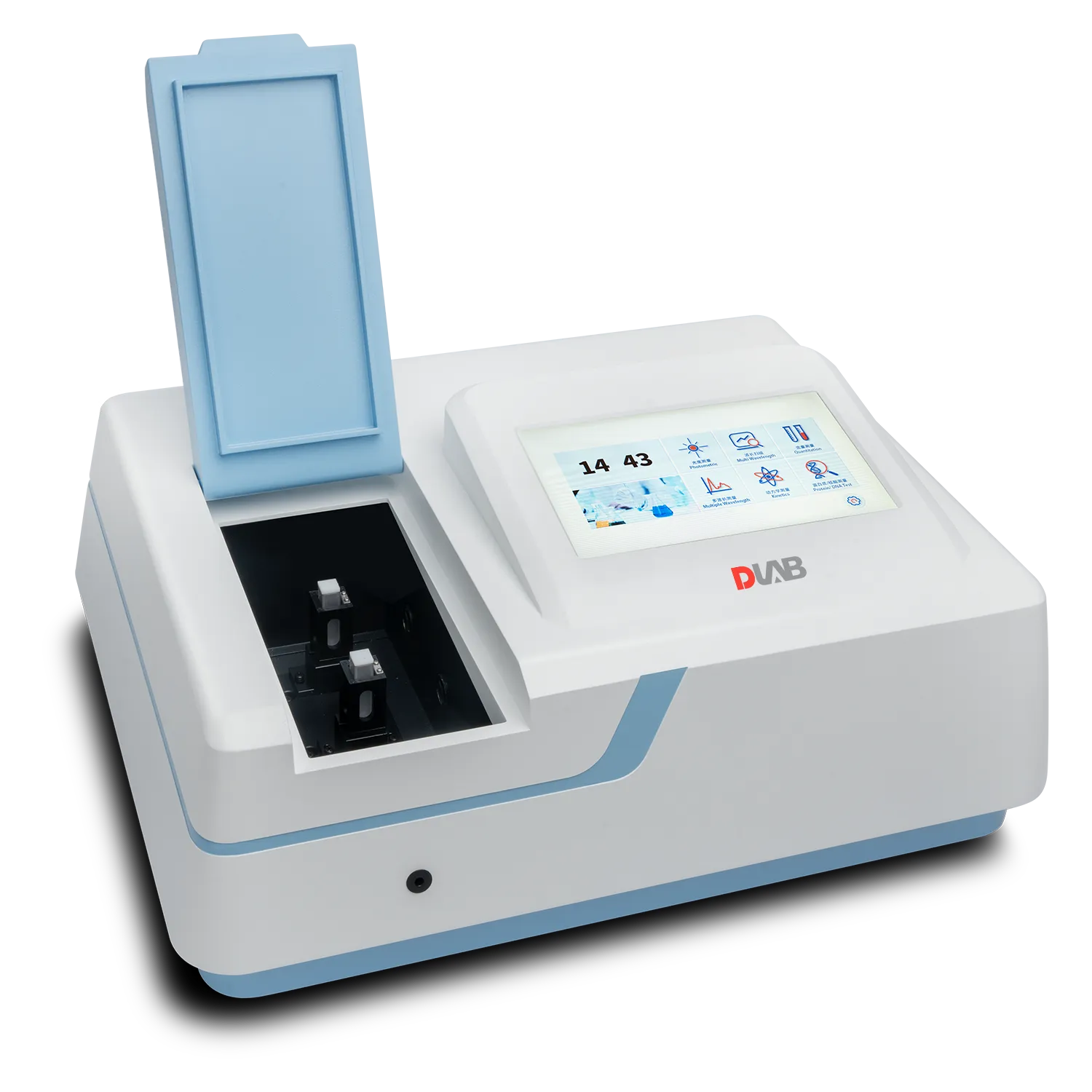

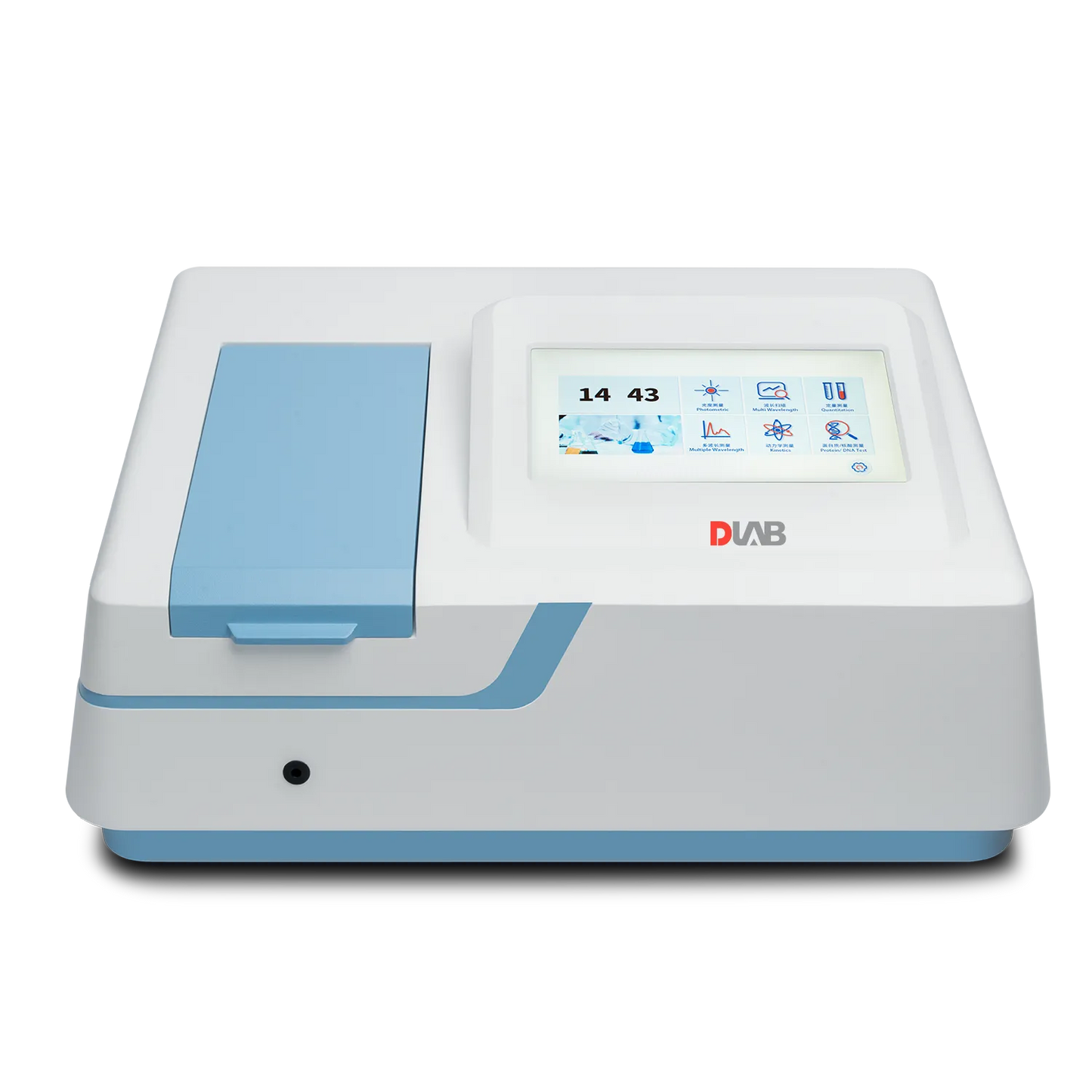

SP-UV2101 Touch screen single beam Visible spectrophotometer
SP-UV2101 Touch screen single beam Visible spectrophotometer
- The instrument is equipped with a 10.1-inch large color touch screen (1024*600), designed with an easy-to-use graphical user interface.
- The main unit independently performs photometric measurement, quantitative analysis, spectrum scanning, kinetics, DNA/protein testing, and multi-wavelength testing.
- When controlled via PC software, it provides richer extension applications. The software adheres to GLP/GMP laboratory standards and includes comprehensive user management, log recording, data storage traceability, and report output functions.
- It boasts powerful storage capabilities, able to save various types of data and spectra, equipped with a standard USB interface for direct data exportation for editing, measurement, and storage. The instrument also features a power-off data retention function.
- The unique design provides excellent optical performance, utilizing a holographic grating monochromator and a digital photodiode detector, ensuring low stray light, low noise, and high photometric accuracy and stability.
- A new wavelength drive mechanism greatly improves wavelength accuracy and repeatability while significantly reducing operational noise.
- It supports a wide range of optional accessories, including a wireless Bluetooth printer, automatic cell holder, film sample holder, tube cell holder, thermostatic bath holder, optical integrating sphere, reflectance attachment, variable path length sample holder, and variable angle solid sample holder, among other specialized accessories.
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Model: SP-UV2101
Optical System: Single Beam
Light source: Tungsten(HYBEC, Japan)
Light Source: Deuterium Lamp (MIRAS)
Spectral Bandwidth: 1.0nm
Wavelength Range: 190-1100nm
Wavelength Accuracy: ±0.1nm@656.1nm, ±0.3nm@all
Scanning speed: Hi, Med, Low
Wavelength Repeatability: ≤0.1nm
Photometric Range: -0.3-3.0A, 0-200%T
Photometric Accuracy: ±0.2%T(0-100%T), +0.002A(0-0.5A), +0.004A(0.5-1A)
Photometric Repeatability: ≤0.15%T(0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
stability: ≤0.0003A/h@500nm (Preheat for 1 hour)
stray Light: ≤0.03%T@220nm, 360nm
Cuvette Holder: 4-cell holder, 10mm
Display: 10.1-inch large color touch screen (1024*600)
Output: USB, print port
Power: 110/220V, 50/60Hz, 120W
Instrument Size (LxWxD): 570×440×210mm
Net Weight: 20kg
