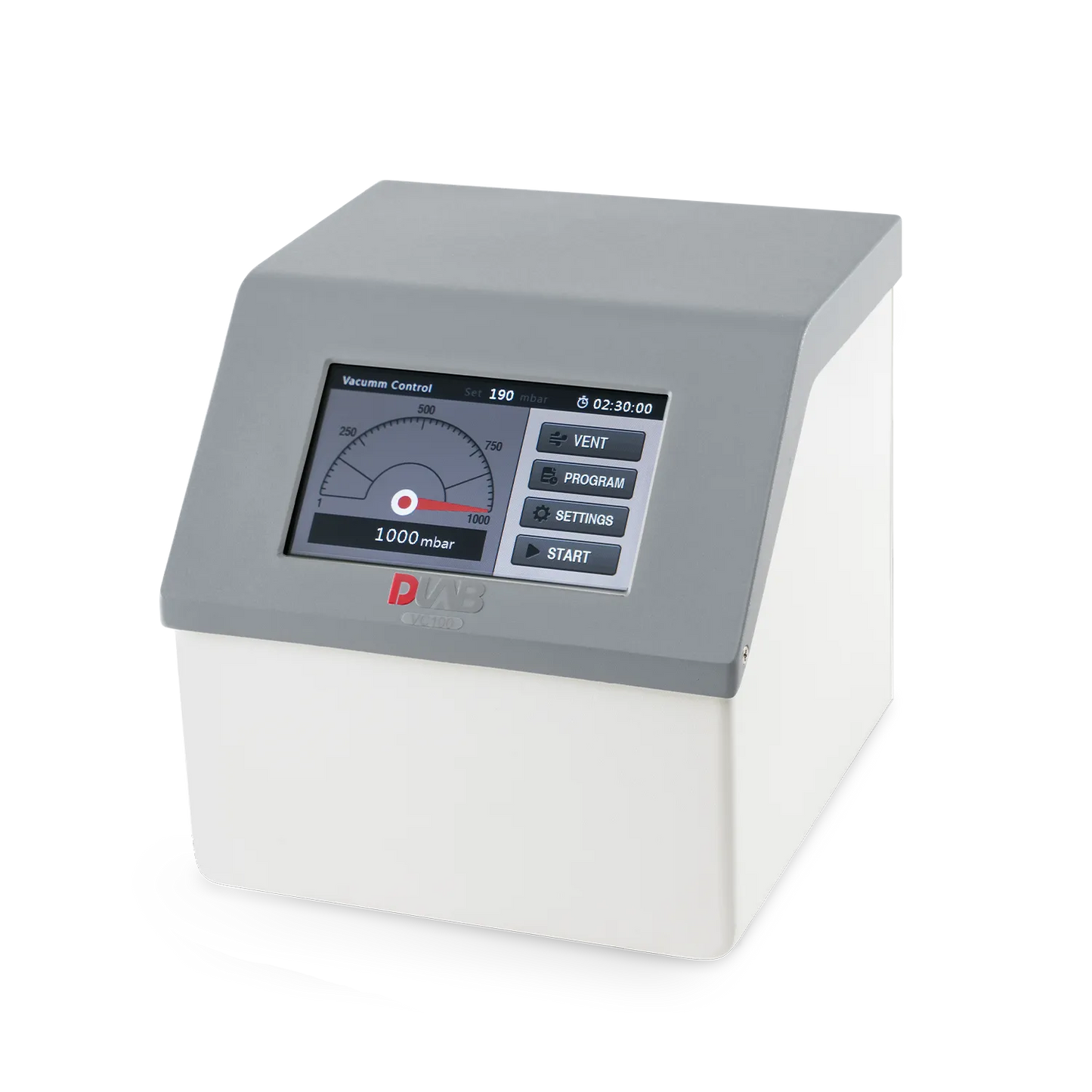

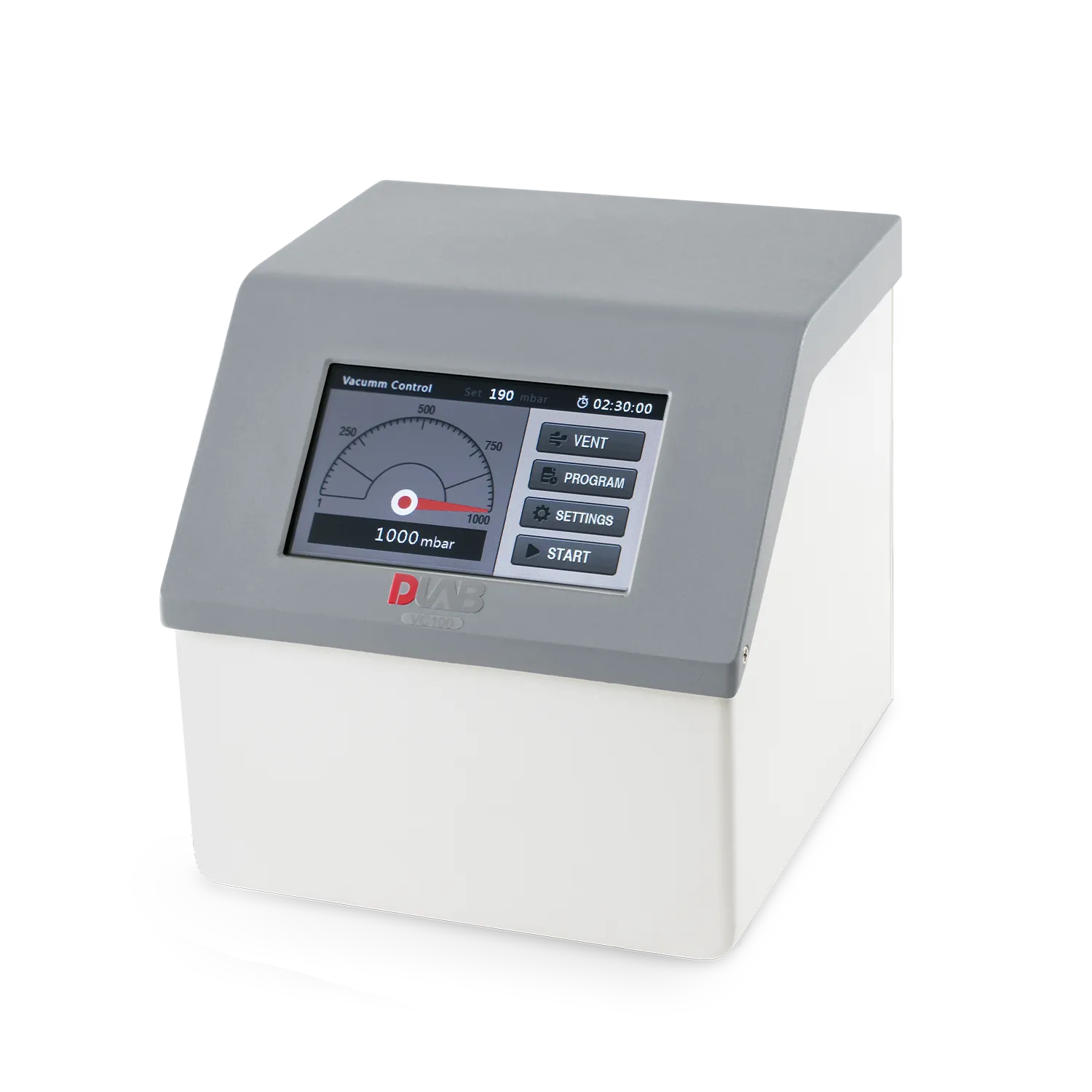

VC100 Vacuum Controller
VC100 Vacuum Controller
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
- Wide range of measurement and control, 1-1,000mbar
- Two control modes available Single-point control and programmed control
- Stores up to 5 programs, each containing up to 5 steps of programming control
- Large TFT touch screen display control provides easy operation
- All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials which effectively resists corrosion caused by organic solvents, water, acid and alkali
- Built-in vent valve can feed inert gas into system equipment
- One-click decompression allows easy installation and dismantling of vacuum system
- Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.
- Can also be operated in the normally open status of pump
- Reliable and functional design to fulfill essential needs of precise vacuum regulation
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Specifications: VC100
Vacuum setting range: 1-1000mbar
Vacuum measurement range: 1-1000mbar
Control mode: Single-point control mode, Programmed control mode
Control program: Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)
Setting method: Touch screen setting
Display: 5" TFT
Sensor overload pressure: 1,500mbar
Connector diameter: 8mm
Materials in contact with vapor: PTFE, PP, silicone and ceramics
Power: 600W
Compatible conditions with vacuum pump: Power of 50Hz vacuum pump ≤ 400W Power of 60Hz vacuum pump ≤ 500W
Overall dimensions WxDxH: 189x207x193mm
Weight: 4.0kg
Voltage, Frequency: 110 240V, 50Hz/60Hz
Operating environment: 10°C ~ 40°C ≤ 80%RH
