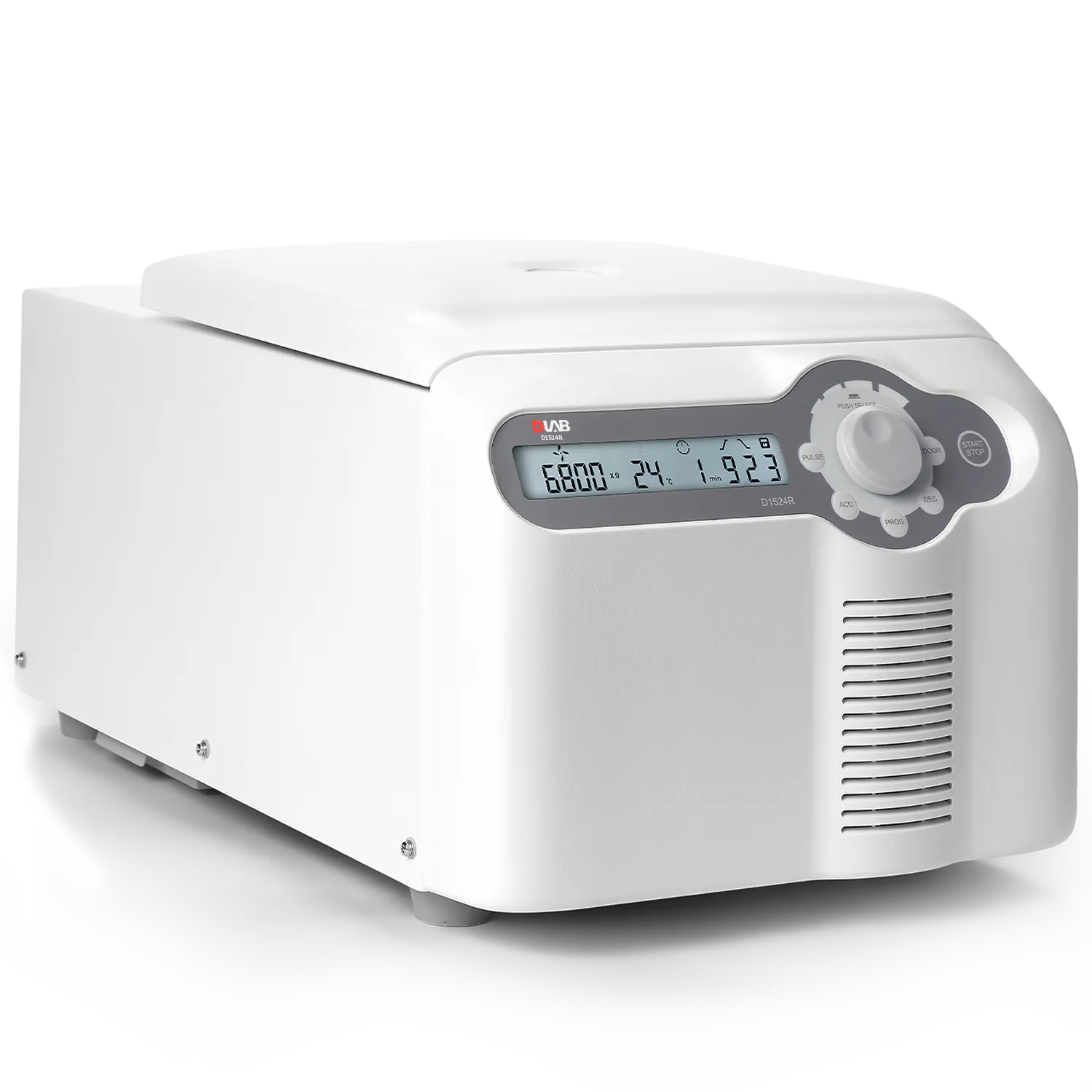

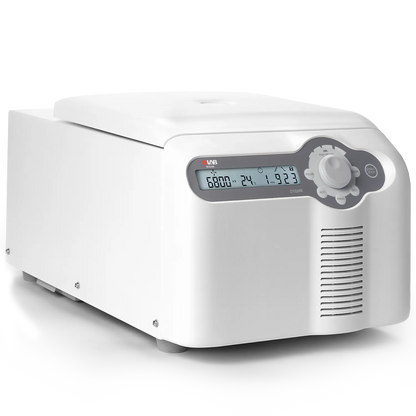

D1524R High Speed Refrigerated Centrifuge
D1524R High Speed Refrigerated Centrifuge
- Electronic Magnetic door locking system - the lid can be closed with one hand soft touch
- Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
- Sound indicator at the end of running.
- Temperature range -20℃ to 40℃
- Short pre-cooling time of only 7minutes from room temperature to 4℃
- Up to 9 program storage capacity

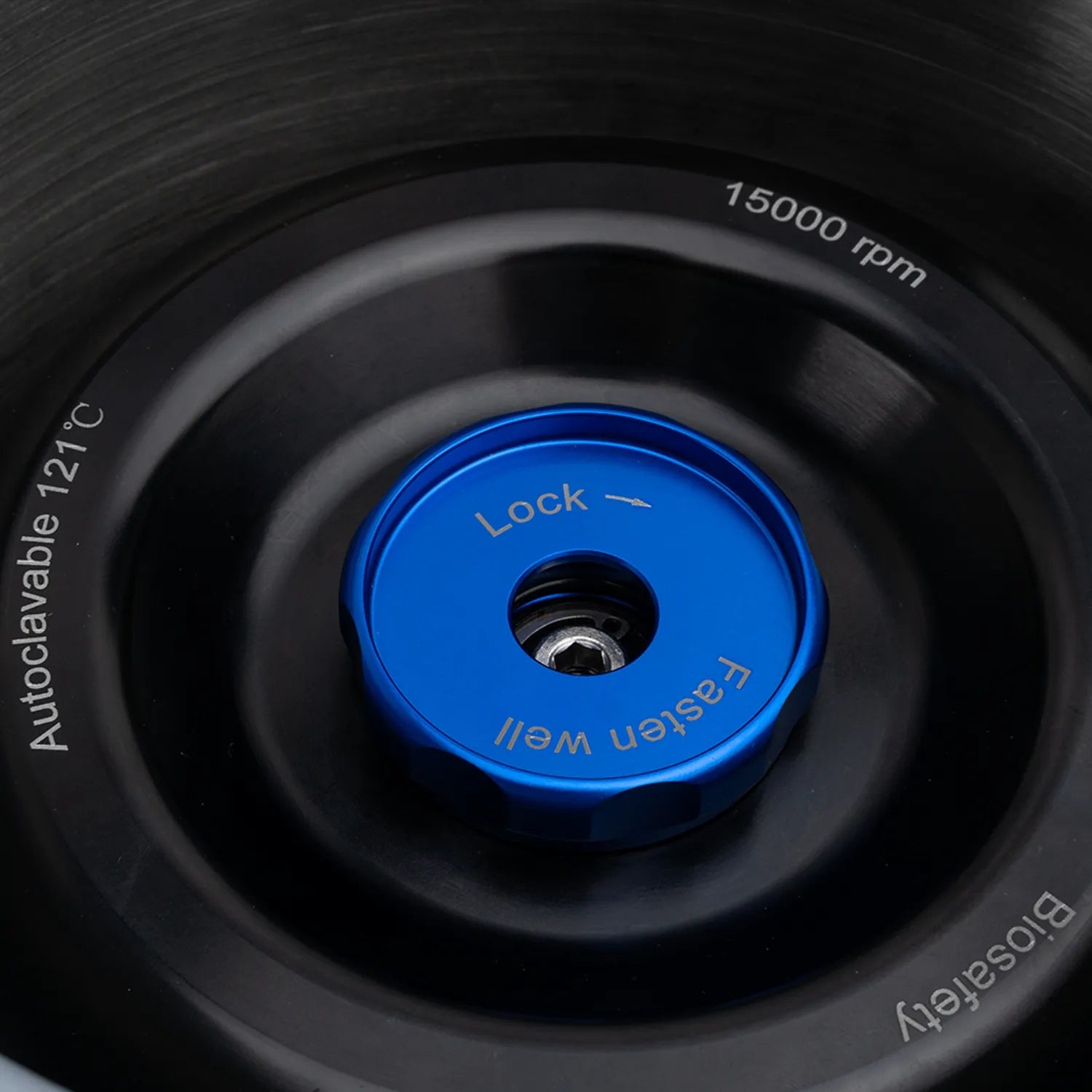

- 3-layer sealed rotors ensure safe centifugation
- High-strength aluminum alloy rotor can be fully autoclavable at 121℃
- Rotor imbalance detection alarm
- Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation

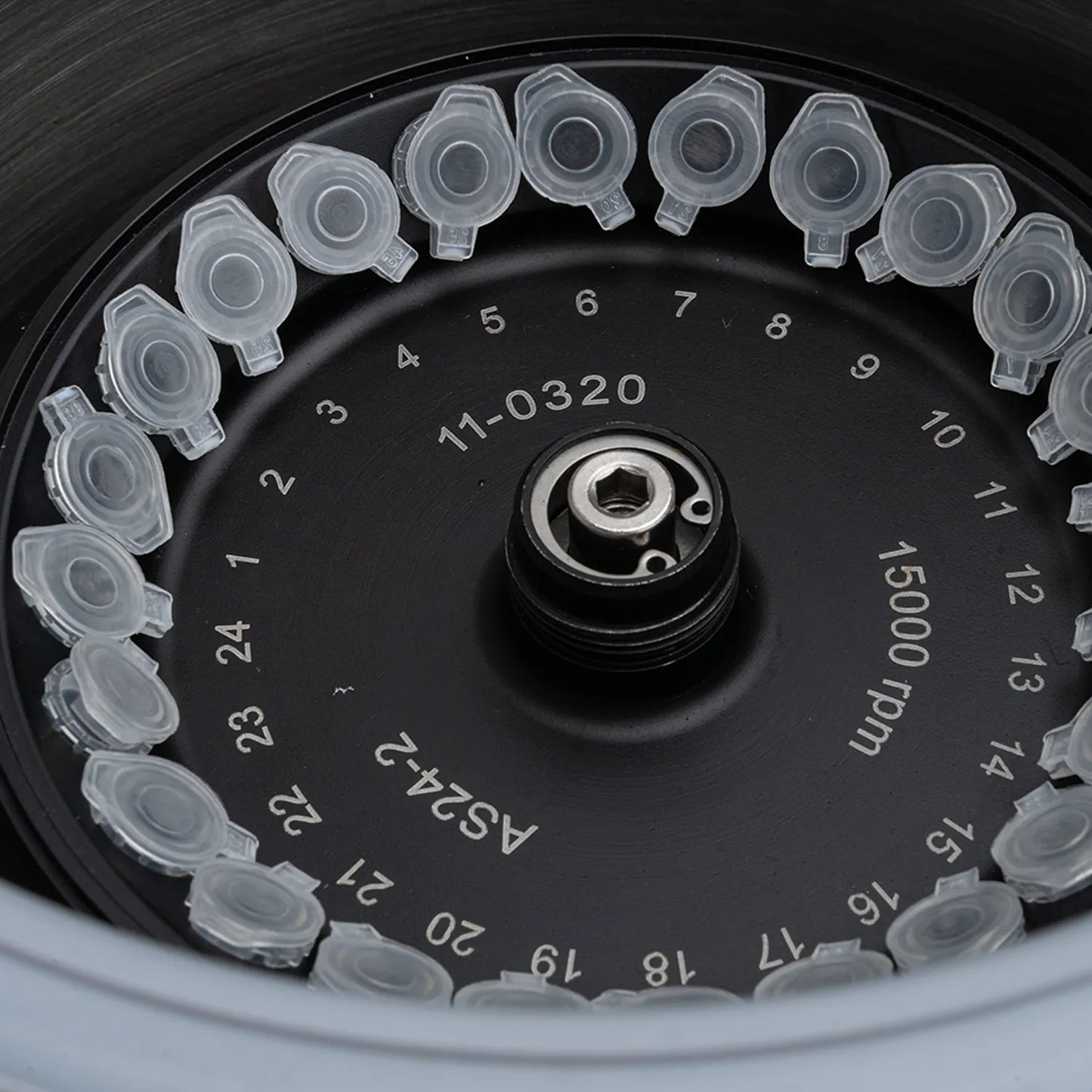

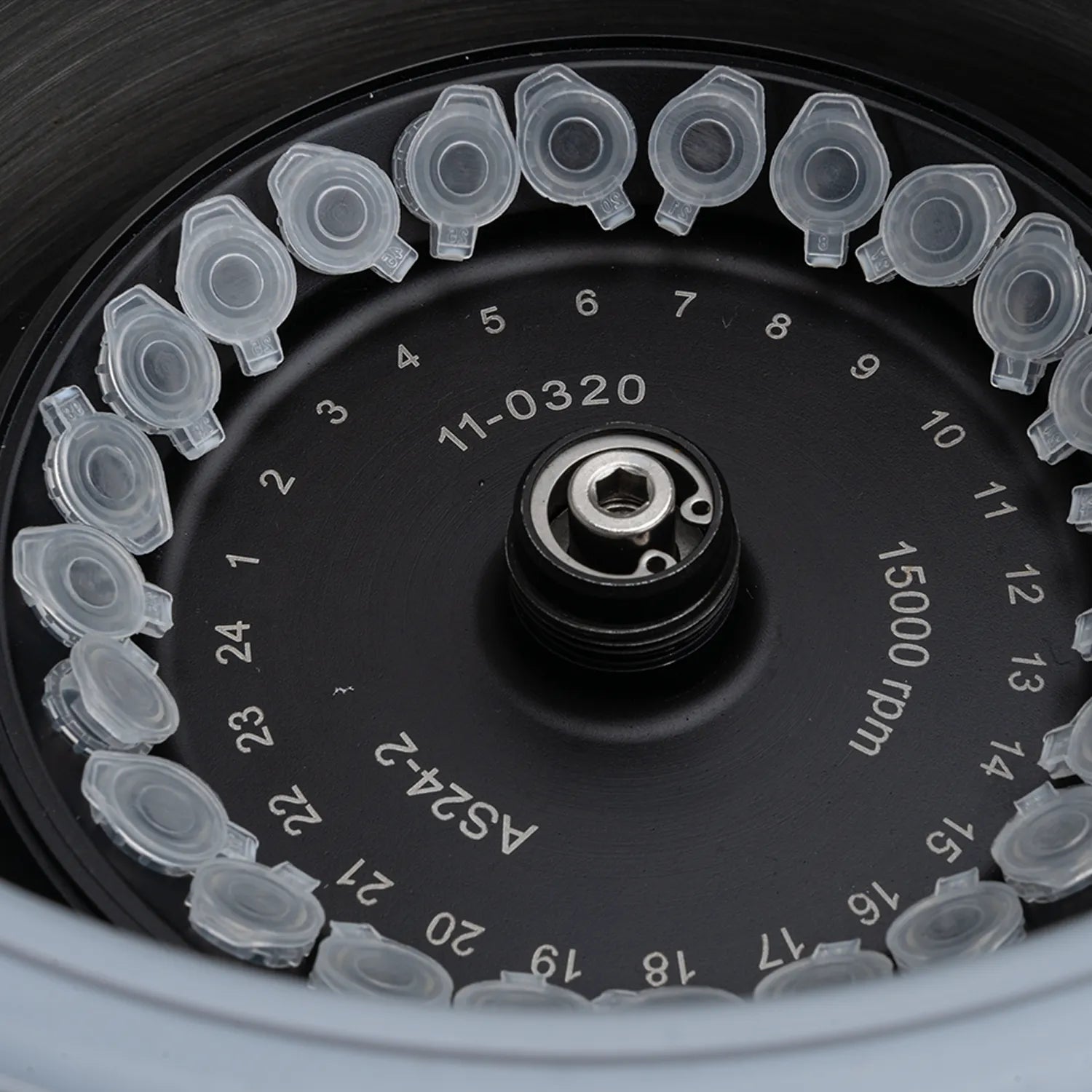

- Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
- An external condensation tank prevents water accumulation within centrifuge chamber
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Max. Speed: 15,000rpm (200-15,000rpm) in 100rpm increments
Max. RCF: 21,380×g, step: 10×g
Capacity: 36×0.2/0.5mL, 24×1.5/2mL, 4×0.2mL PCR-8 tube strip, 12×5mL (cone bottom), 18×5mL (round bottom)
Temperature setting: -20℃-40℃
Run Time: 30s-99 min; HOLD (continuous running)
Acceleration and deceleration time: 25s ↑ 25s ↓
Motor Type: Brushless DC motor
Safety Performance: Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
Power Requirements: Single-phase, 100-120V/200-240V, 50Hz/60Hz, 500W
Noise Level: ≤56dB
Dimensions[W×D×H]: 332 × 553 × 283mm
Weight: 30kg
Other functions Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Adjustable acceleration/deceleration at 9 levels program storage capacity.
