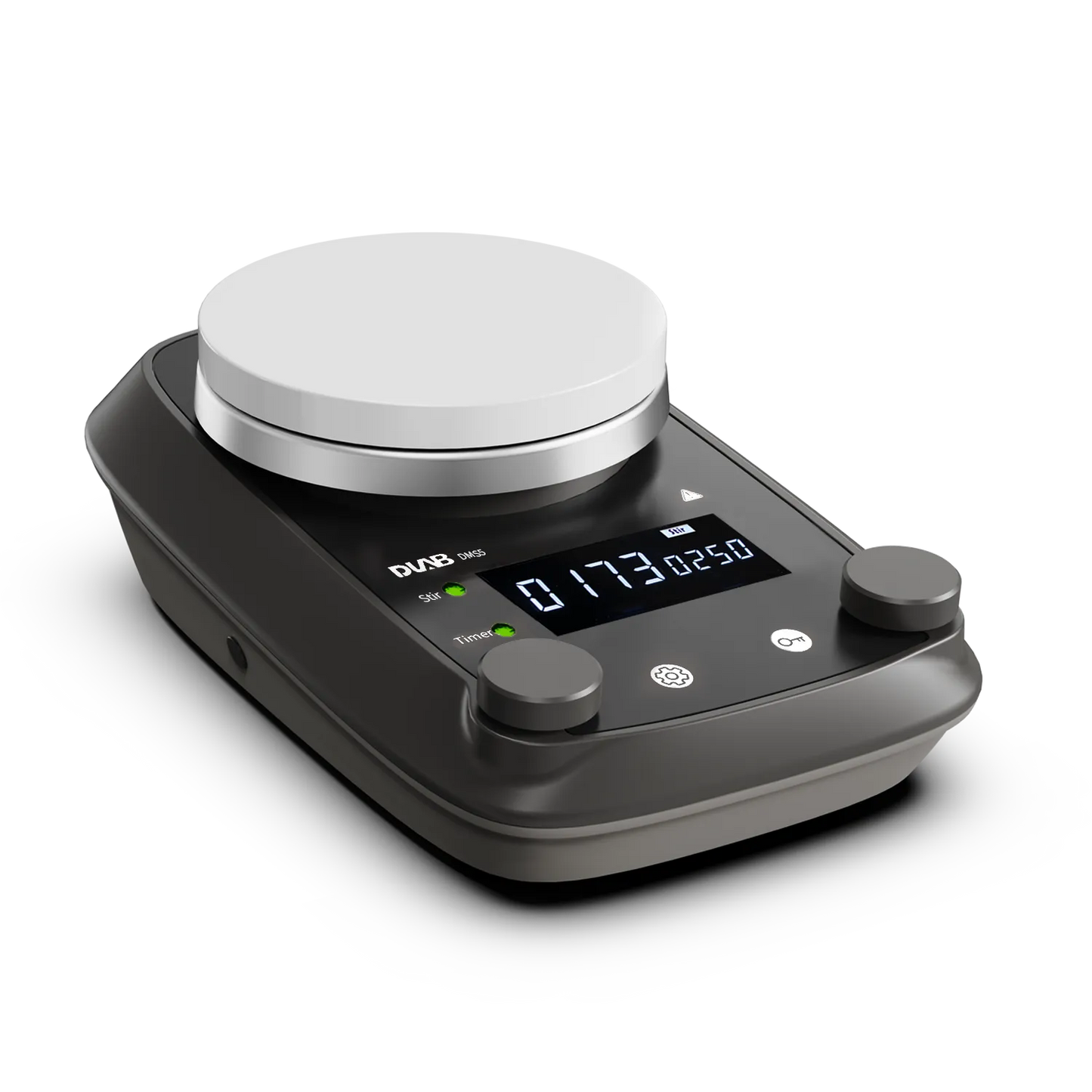

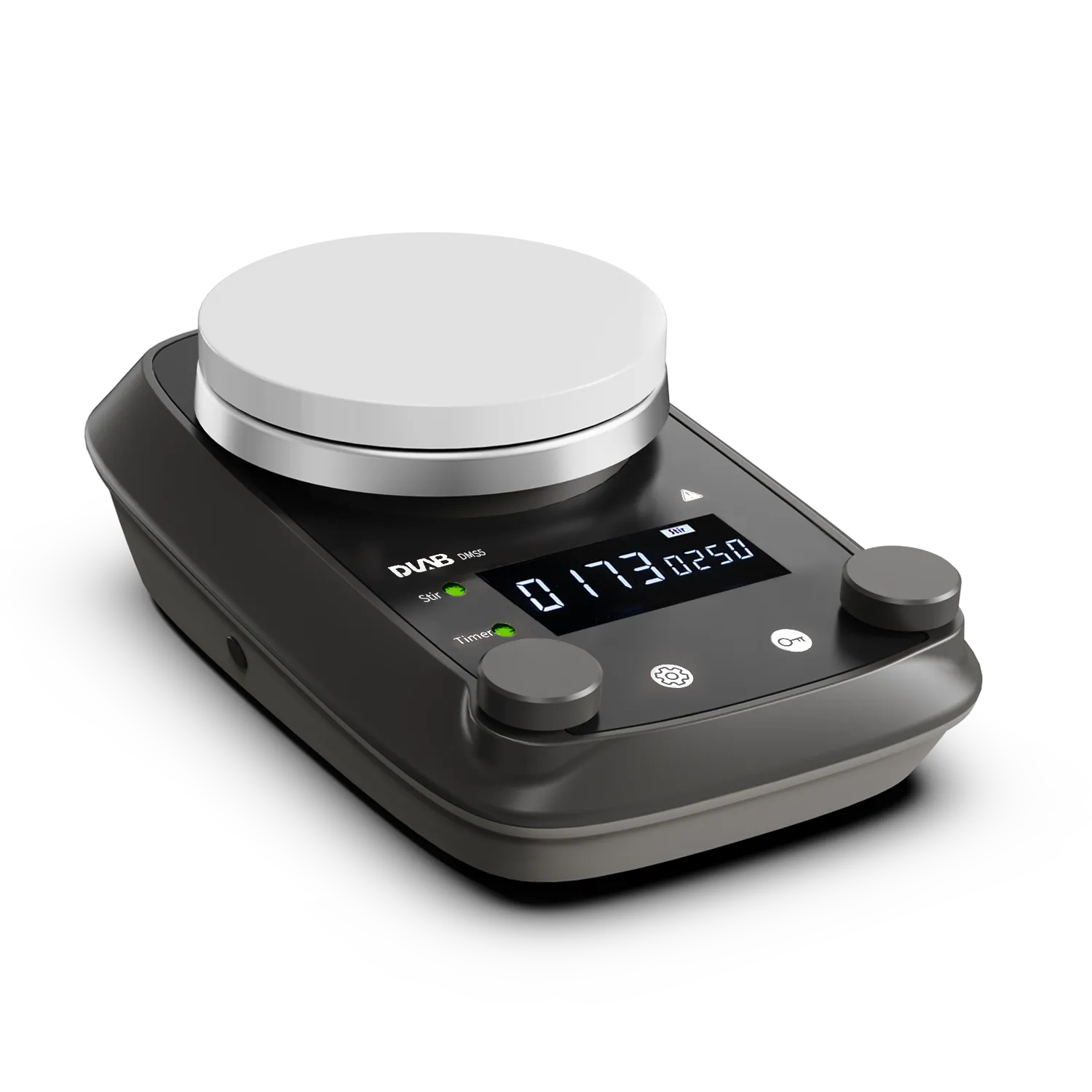

DMS5 LCD Magnetic Stirrer with Timer
DMS5 LCD Magnetic Stirrer with Timer
常规价格
$0.00 USD
常规价格
促销价
$0.00 USD
- The ceramic-coated aluminum plate offers strong corrosion resistance and is easy to clean.
- The corrosion-resistant full metal housing provides excellent heat dissipation and reliable fire protection.
- Selected high-temperature resistant strong magnets provide powerful stirring force, suitable for mixing viscous liquids.
- The powerful parallel magnetic field ensures uniform magnetic force across the entire surface of the plate.
- High protection level: IP42.
- The safety lock prevents accidental changes to the operating status.
- Buzzer: When a fault occurs or the timer countdown ends, the buzzer emits a "beep-beep-beep" alert sound.
- Brushless DC motor: Spark-free operation, long service life, low noise, maintenance-free, and stable performance.
- The LCD display shows the set and real-time values for speed, time, and temperature, providing clear and intuitive readings.
- Timer function: Adjustable from 1 minute to 99 hours and 59 minutes.
- Remote control function is available, allowing connection to a computer.
- The device comes with a wide range of accessories, making it suitable for chemical synthesis laboratories in universities, research institutions, and enterprises.
PRODUCT PARAMETERS
PRODUCT PARAMETERS
Working plate size：Ø135mm (5 inch)
Plate Material：Aluminium with ceramic coating
Motor type：Brushless DC motor
Stirring positions：1
Maximum stirring volume [H₂O]：10L
Maximum stirrer size [length]：80mm
Speed range and step：50-1500rpm, increment 1rpm
Speed Display：LCD
Temperature display：LCD
Data connection：RS232
Protection class：IP42
Timer function：1min-99h59min
Motor output power：10W
Power：30W
Voltage,Frequency：100-240V, 50/60Hz
Dimensions [L×W×H]：270x175x108mm
Weight：1.8kg
Permissible ambient temperature and humidity：5-40°C, 80%RH
